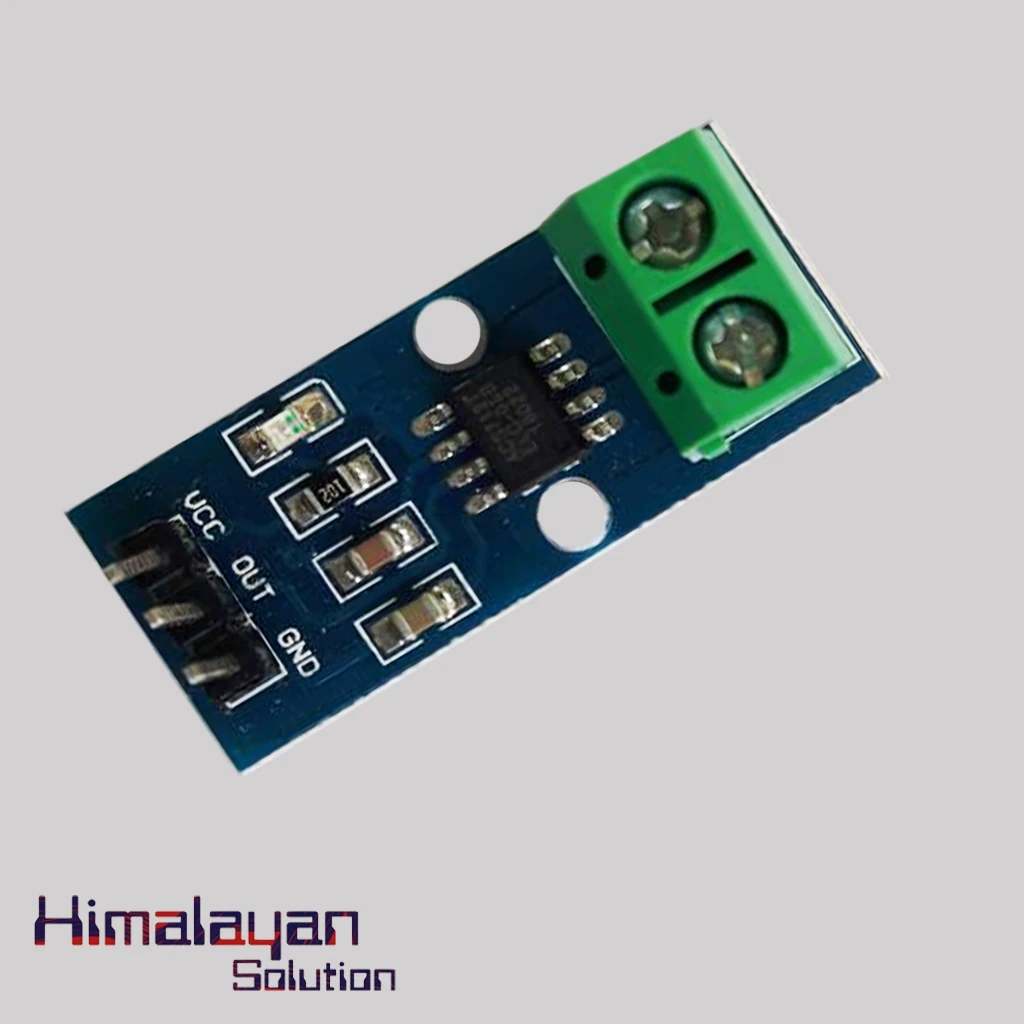

ACS712 30A Current Sensor Module

0 /5.0 (0 reviews)
SKU 2.91((90279090 curren sensor module)

The 30A Current Sensor use ACS721 Chip. It is used to determine the flow of current through the circuit in the range of minus 30 Amps to positive 30 Amps. This module has on board power indicator with stable output offset voltage. It can be used for motor control, detection and handling of loads, overcurrent protection...

Read more
seller

Inhouse product

  • warranty check circle Cash on delivery available

The 30A Current Sensor use ACS721 Chip. It is used to determine the flow of current through the circuit in the range of minus 30 Amps to positive 30 Amps. This module has on board power indicator with stable output offset voltage. It can be used for motor control, detection and handling of loads, overcurrent protection and many more.

Specifications

12
 Chip
ACS712ELC
Power Supply
5V
Sensitivity
66mV/A
Bandwidth
80 kHz
Internal Conductor Resistance
1.2 mΩ
Max Current
30A
Total Output Error
1.5%
VCC
5V
OUT
Analog Output (To Arduino Analog Pins)
GND
0V
Zero Current Output Voltage
VCC / 2
Size
31 (mm) x13 (mm)
