Infrared Sensor (IR ) Module

0 /5.0 (0 reviews)
SKU 0.93( Infrared remote module 85312000)

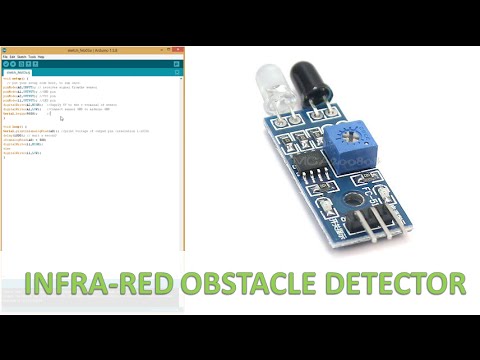

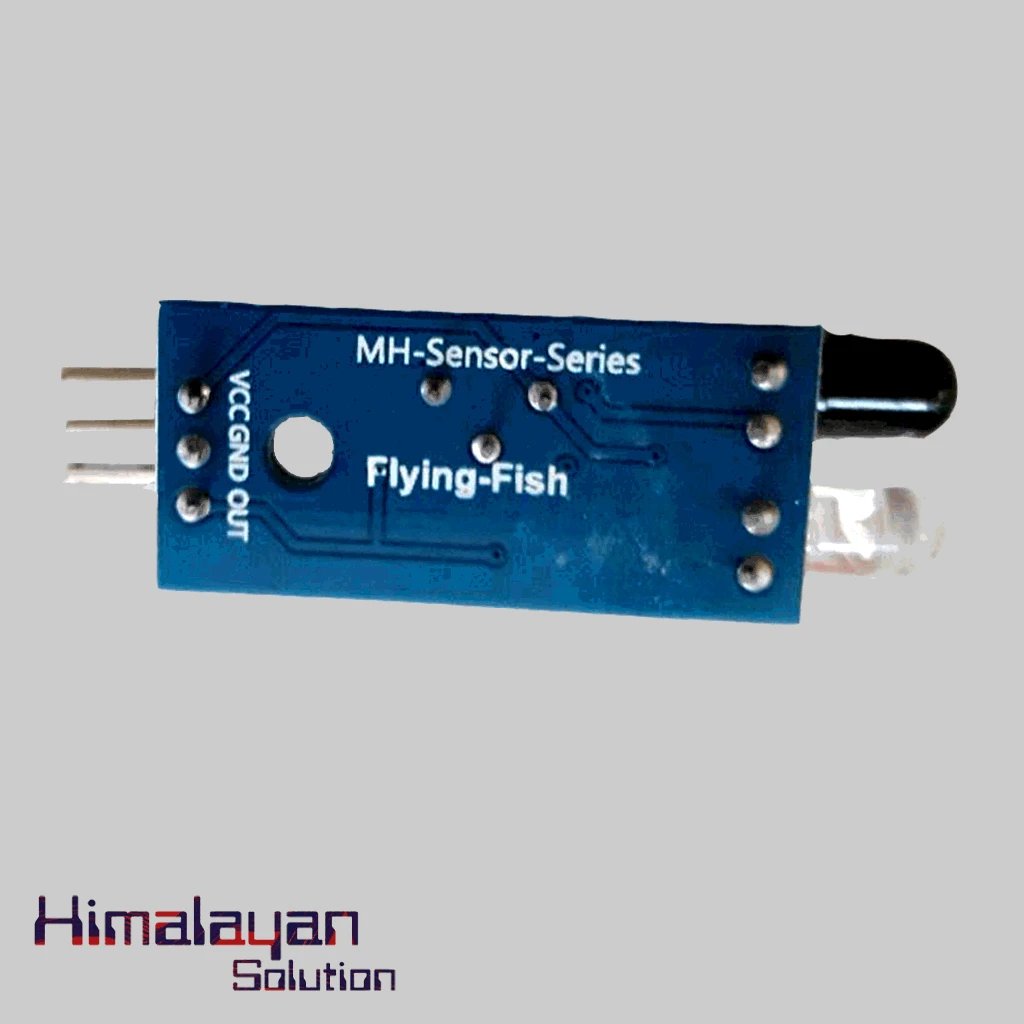

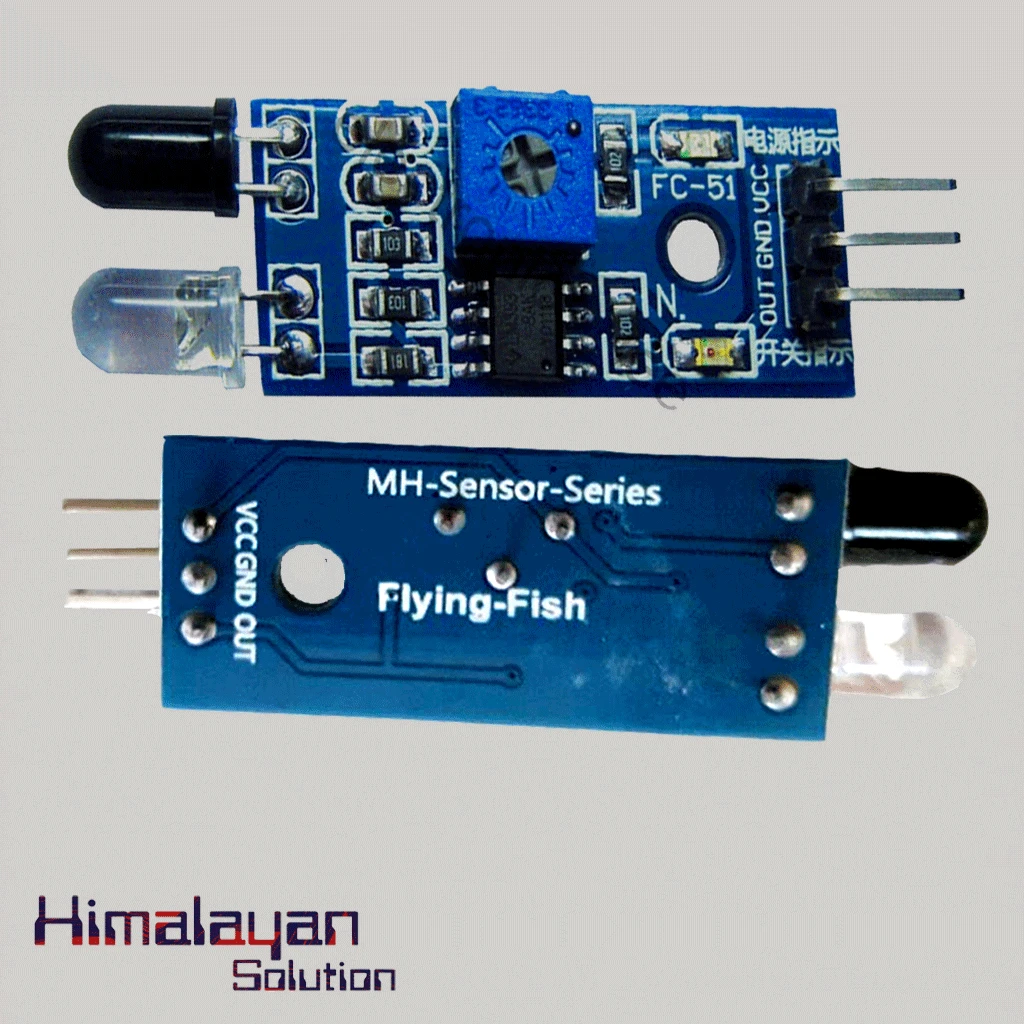

Infrared Sensors (IR) Module  is used to detect presence of any obstacle in front of the sensor module. It  has built-in IR transmitter and IR receiver , on board potentiometer .. Even in low light or in complete darkness the sensor has very good and stable response. It can be used for Obstacle avoidance in robots , Se...

Read more
seller

Inhouse product

  • warranty check circle Cash on delivery available

Infrared Sensors (IR) Module  is used to detect presence of any obstacle in front of the sensor module. It  has built-in IR transmitter and IR receiver , on board potentiometer .. Even in low light or in complete darkness the sensor has very good and stable response. It can be used for Obstacle avoidance in robots , Security systems and other object detection.It is stable and accurate with male header for easy connection.

Specifications

7
Detection Angle
35 °
Operating Voltage
3.0V – 6.0V
Detection Range
2cm – 30cm (Adjustable Using Potentiometer)
Active Output Level
Outputs Low Logic Level When Obstacle is Detected
In-Active Output Level
Outputs High Logic Level When Obstacle is Not Detected
Current Consumption
3.3V (23 mA ) / 5.0V(43 mA)
Size
4.5cm x 1.4 cm x 0.7cm
