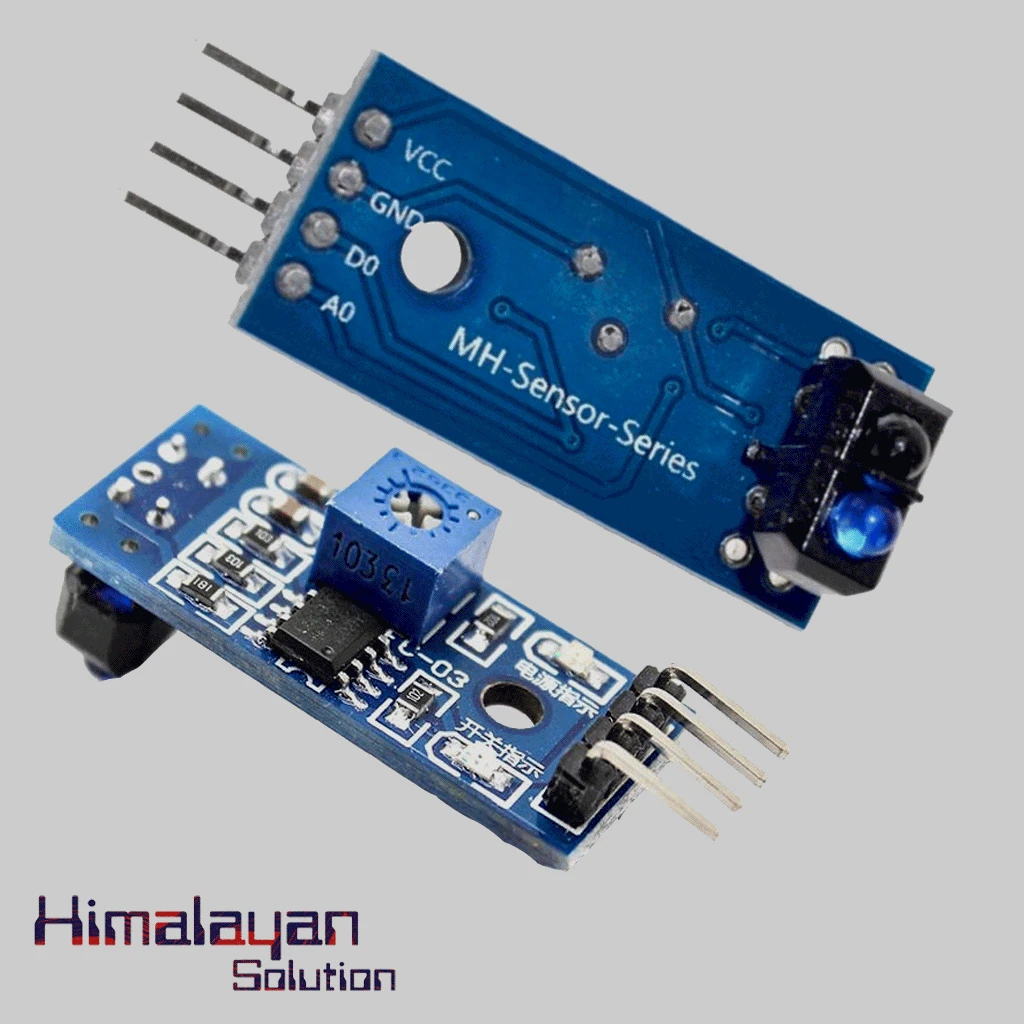

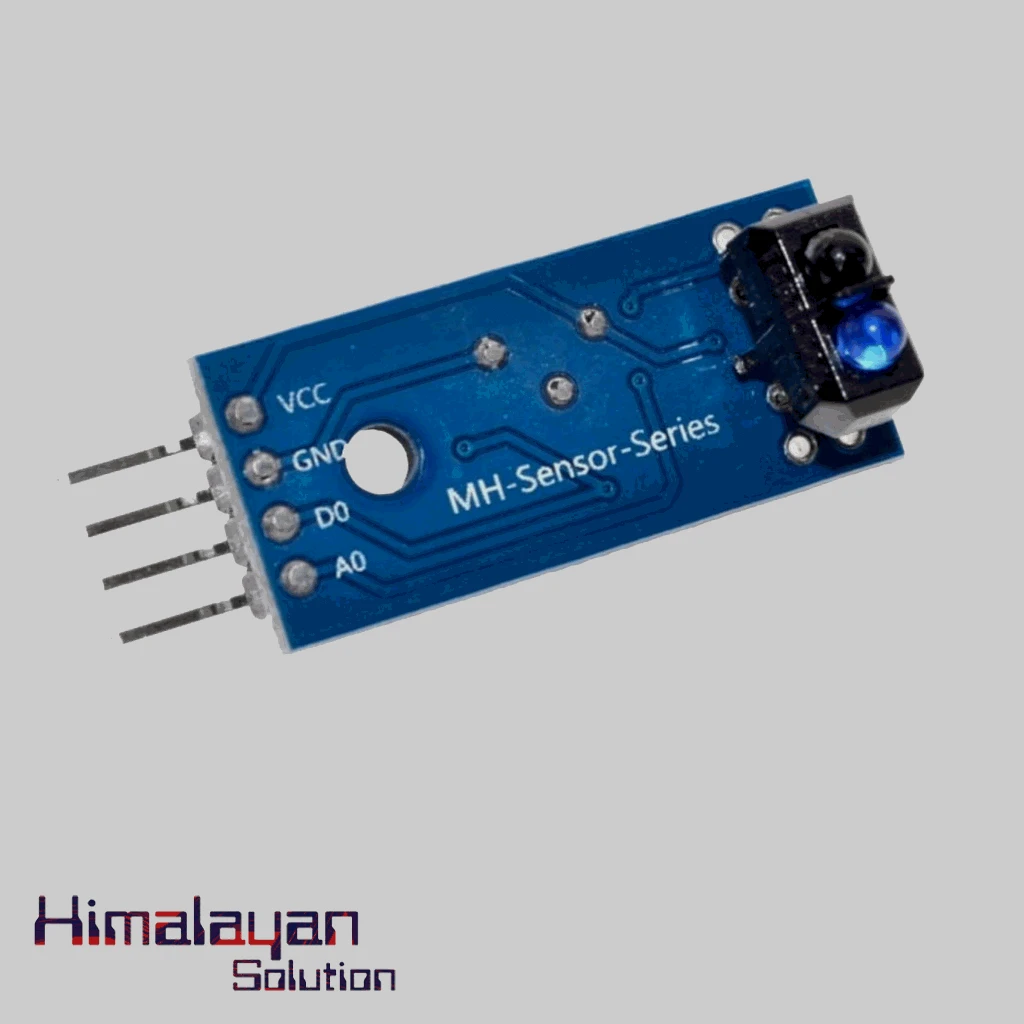

TCRT 5000 Sensor Module

0 /5.0 (0 reviews)
SKU HS045

The TCRT 5000 sensor module helps to detect color and distance.  It  has on board indicator LED and has good accuracy . It provides clean comparator output signal. To adjust the sensitivity on-board potentiometer is in-built. The bolt hole present for  easy installation . It can be used in detecting rainfall, liquid le...

Read more
seller

Inhouse product

  • warranty check circle Cash on delivery available

The TCRT 5000 sensor module helps to detect color and distance.  It  has on board indicator LED and has good accuracy . It provides clean comparator output signal. To adjust the sensitivity on-board potentiometer is in-built. The bolt hole present for  easy installation . It can be used in detecting rainfall, liquid leakage etc. Its measuring distance is from 1 mm to 8 mm.

Specifications

8
Voltage Comparator
LM393
Detection Range
1mm to 8 mm
Focus Range
2.5 mm
Driving Ability
> 15 mA
Working Voltage
3.3 V to 5 V
Output
digital Switch Outputs (0 and 1)
Emitter wavelength
950 nm
Size
3.2 x 1.4 cm
