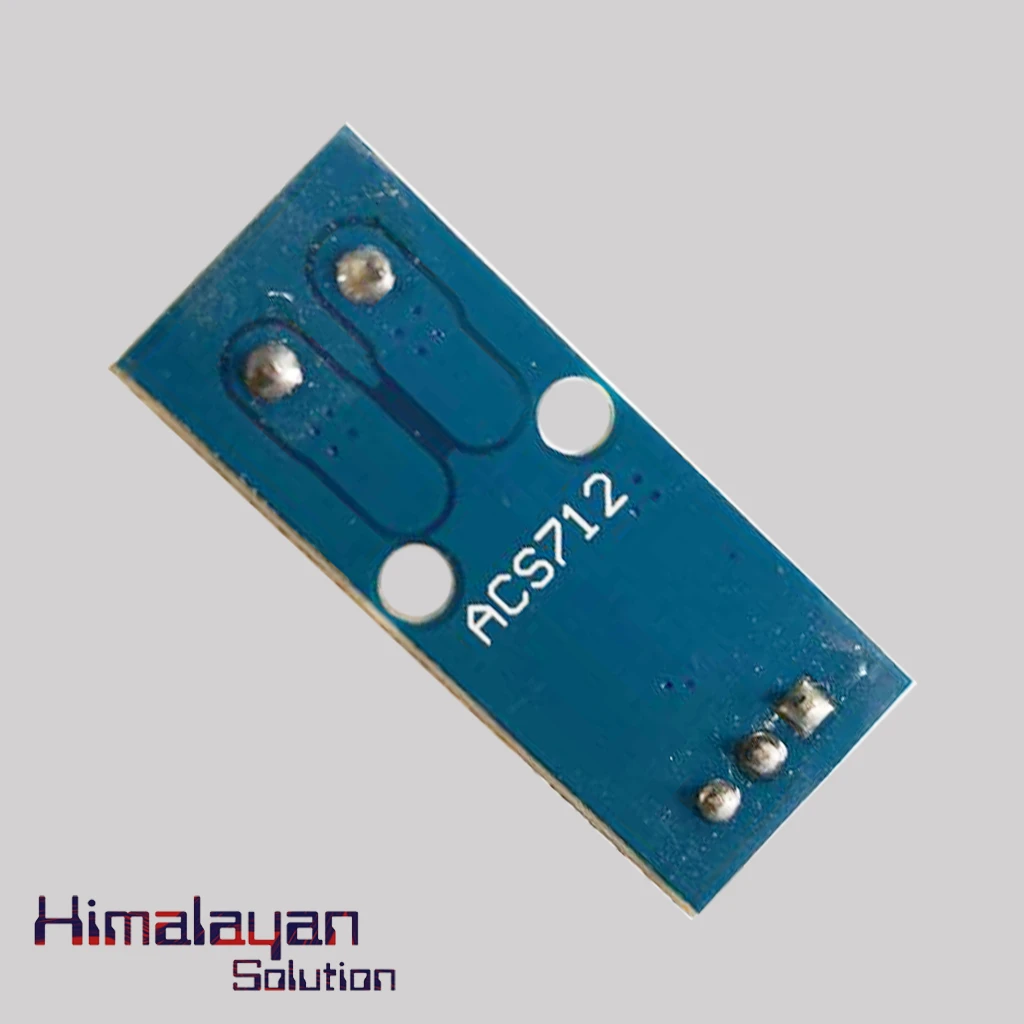

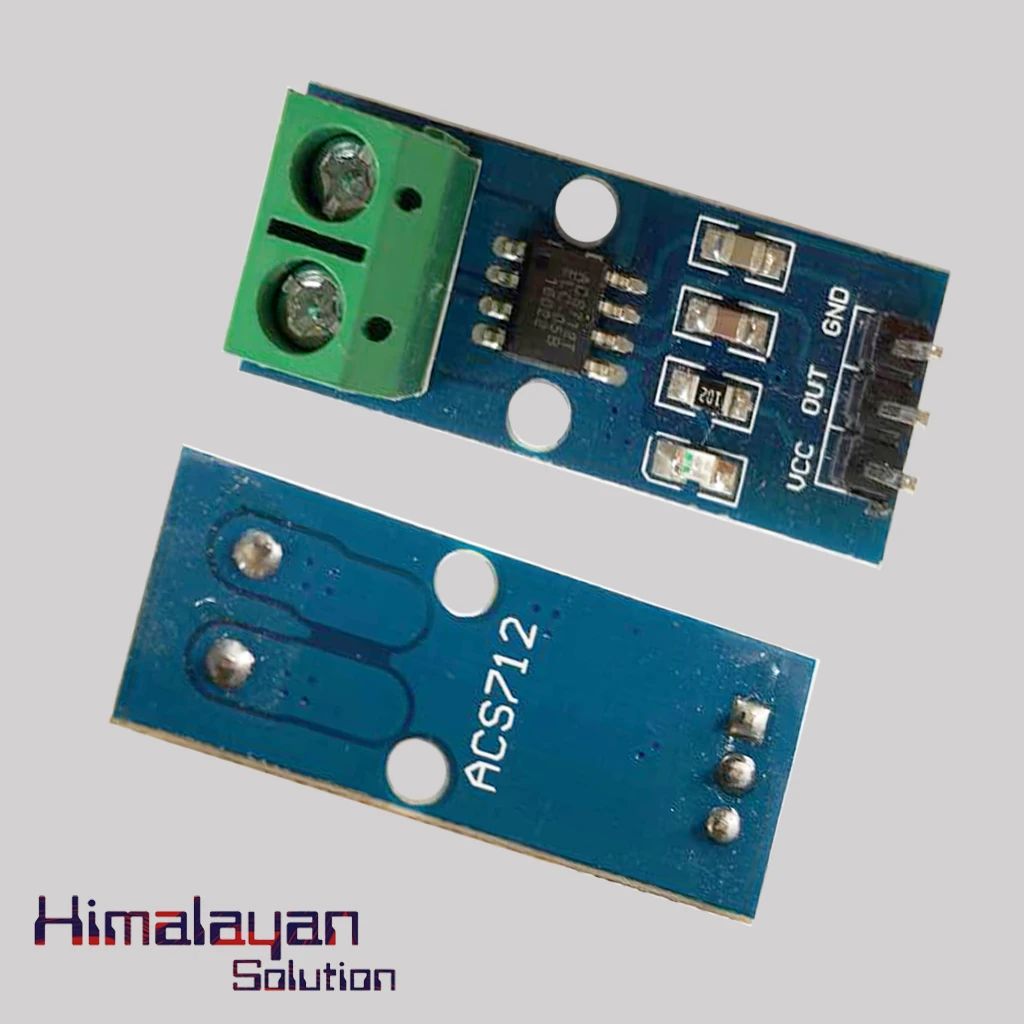

ACS712 5A Current Sensor

0 /5.0 (0 reviews)
SKU 2.91((90279090 curren sensor module)

The Current Sensor ACS712 5A is a Hall Effect Current Sensor Module that can sense current up to bidirectional 5A with lower than 5% error. This module measures the current and converts it to a voltage level suitable for inputting into a Microcontroller such as: - Arduino, for processing. It is based on Allegro’s ACS71...

Read more
seller

Inhouse product

  • warranty check circle Cash on delivery available

The Current Sensor ACS712 5A is a Hall Effect Current Sensor Module that can sense current up to bidirectional 5A with lower than 5% error. This module measures the current and converts it to a voltage level suitable for inputting into a Microcontroller such as: - Arduino, for processing. It is based on Allegro’s ACS712 magnetic linear current sensor IC. This module can be easily used in applications that require electronic isolation.

Specifications

9
Name
Current Sensor ACS712 5A
Operating Voltage Range
3 to 5 V
Internal Resistance
1.2mΩ
Operating Temperature
-40⁰C To 85⁰C
Measurement Range
-5 To +5 Amps
Current Sensor Chip
ACS712ELC-05A
Voltage At 0A
VCC/2 (Nominally 2.5Vdc)
Scale Factor
185 mV Per Amp
PCB Board Size
31 mm x13 mm
