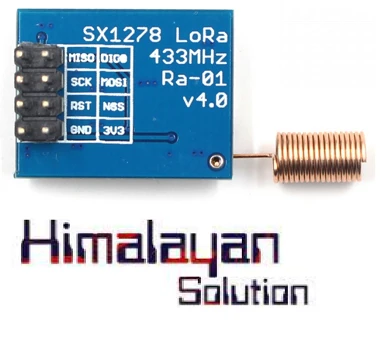

Ai-Thinker Ra-01, LoRa Module, RF Wireless Transceiver based on SX1278, 10KM Ultra Long Range for IOT(With Attached Anteena)

0 /5.0 (0 reviews)
SKU 20

Antenna Included Works with Arduino, Raspberry Pi, ARM, AVR, PIC and other controllers Longer range than Bluetooth, WiFi, Zigbee Applications include, Automated Meter Reading, Home and Building Automation, Wireless Alarm and Security Systems, Industrial Monitoring and Control, Long range Irrigation Systems, Smart City

Read more
seller

Inhouse product

  • warranty check circle Cash on delivery available
  • Antenna Included
  • Works with Arduino, Raspberry Pi, ARM, AVR, PIC and other controllers
  • Longer range than Bluetooth, WiFi, Zigbee
  • Applications include, Automated Meter Reading, Home and Building Automation, Wireless Alarm and Security Systems, Industrial Monitoring and Control, Long range Irrigation Systems, Smart City

Ra-01 is a wireless transmission module based on SEMTECH’s SX1278 wireless transceiver. It adopts advanced LoRa spread spectrum technology, with a communication distance of 10,000 meters. It has a strong ability of anti-jamming and has the function of air wake-up Consumption.  The LoRa series module Ra-01 is designed and developed by AI-THINKER Technology.

The SX1278 RF module is mainly used for long-range spread spectrum communication. It can resist Minimize current consumption. Thanks to SEMTECH’s patented LoRa ™ modulation technology, the SX1278 has a high sensitivity of -148 dBm with a power output of +18 dBm, a long transmission distance and high reliability. At the same time, compared with the traditional modulation technology, LoRa ™ modulation technology has obvious advantages in anti-blocking and selection, which solves the problem that the traditional design scheme can not consider the distance, interference and power consumption at the same time.

Package List:



  • 1 x SX1278 LoRa Ra-01 433MHz

Specifications

4
Input Supply
2.5 ~ 3.7 VDC
Operating Temperature Range
-10 to 85 °C
Programmable bit Rate
UP to 300Kbps
Spectrum range
410-525MHz
