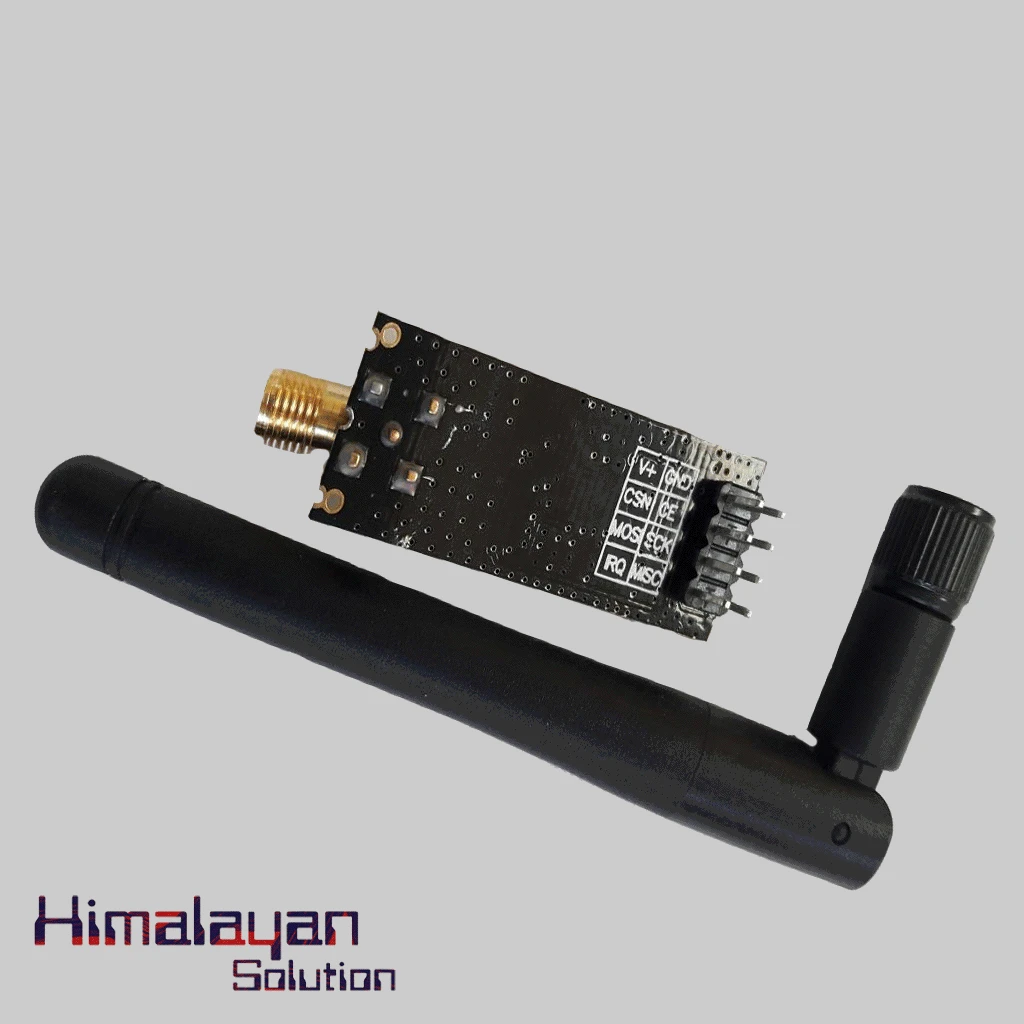

NRF 24l01 With Antenna

0 /5.0 (0 reviews)
SKU 6.88

 The Nrf24l01 wireless transceiver module with antenna is easy and suitable module to setup wireless communication system. This module allows communication up to 1000 meters without barriers. It has active RFID and NFC with support of six channels of data reception.

Read more
seller

Inhouse product

  • warranty check circle Cash on delivery available

 The Nrf24l01 wireless transceiver module with antenna is easy and suitable module to setup wireless communication system. This module allows communication up to 1000 meters without barriers. It has active RFID and NFC with support of six channels of data reception.

Specifications

18
Voltage
3-3.6vV(Recommended 3.3v)
Maximum Output Power
+20 DBm
Emission Mode Operating Current (Peak)
115 MA
Receive Mode Operating Current (Peak)
45 MA
Power-Down Mode Current
4.2 UA
Sensitivity 2Mbps Mode in Received
-92dBm
Sensitivity 1Mbps Mode in Received
-95dBm
Sensitivity 250kbps Mode in Received
-104dBm
PA Gain
20 dB
LNA Gain
10 dB
LNA Voice
Coefficient of 2.6 dB
Antenna Gain (Peak)
2 Dbi
Multi-Frequency
125 Frequency
Interface
SPI
2MB Rate (Open Area)
520m
1MB Rate (Open Area)
750m
250Kb Rate (Open Area)
1100m
Frequency
2.4GHz~2.5GHz
