The XL830L Handheld Digital Multimeter is a compact and user-friendly tool designed for accurate electrical measurements. With a clear 15mm high LCD display, it measures DC/AC voltage, current, and resistance. This versatile multimeter features diode and transistor testing, continuity checks with buzzer alerts, and low battery indication. Perfect for electricians, DIY enthusiasts, and students, it’s a reliable instrument for various applications, including circuit board repairs and educational purposes

The XL830L Digital Multimeter is a practical tool for electricians, featuring an easy-to-operate design that displays readings directly on a clear 15mm high LCD screen. This versatile multimeter is perfect for overhauling various circuit boards and serves as an ideal teaching instrument for students.

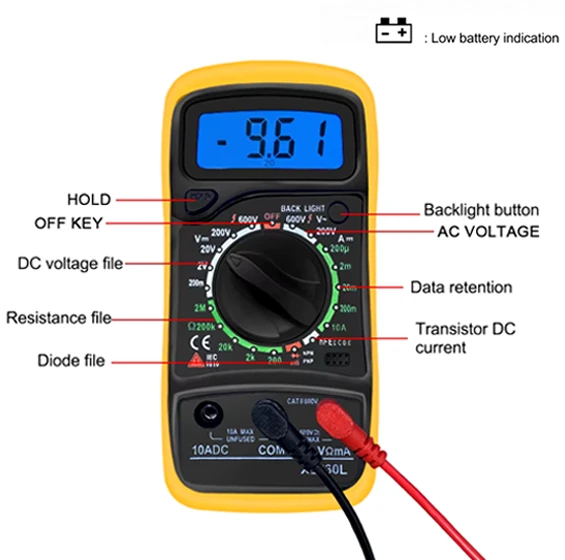

Key Features:

• Max Display: 1999 with auto polarity indication.

• Portable and Compact Design: Overload protection on all ranges.

• Diode and Transistor Testing: Includes diode assembly test, P-N junction test, and transistor HFE test.

• Continuity Testing: Equipped with a buzzer sound for circuit continuity tests.

• Low Battery Voltage Indication: Alerts users when battery replacement is needed.

Measurement Specifications:

• DC Voltage: 200mV/2V/20V/200V ±0.5%, 600V ±0.8%

• AC Voltage: 200V/600V ±1.2%

• DC Current: 200μA/2mA/20mA ±1%, 200mA ±1.5%, 10A ±3%

• Resistance: 200Ω/2KΩ/20KΩ/200KΩ/2MΩ ±0.8%

• Fuse Protection: F-200mA/250V

• Operating Temperature: 0°C to 40°C

• Overrange Indication: Displays "1" for out-of-range measurements.

• Polarity Indication: "-" displayed for negative polarity.

• Low Battery Indication: Displays "-" or "+" for low battery.

Additional Information:

• Battery: 9V .

• Dimensions: Approx. 138mm x 69mm x 31mm

Package Includes:

• 1 x LCD Digital Multimeter

• 2 x Test Leads

• 1 x Back Cover

• 1 x English User Manual

This multimeter is an essential tool for anyone working with electrical systems, offering precision and reliability in a compact and user-friendly package.
