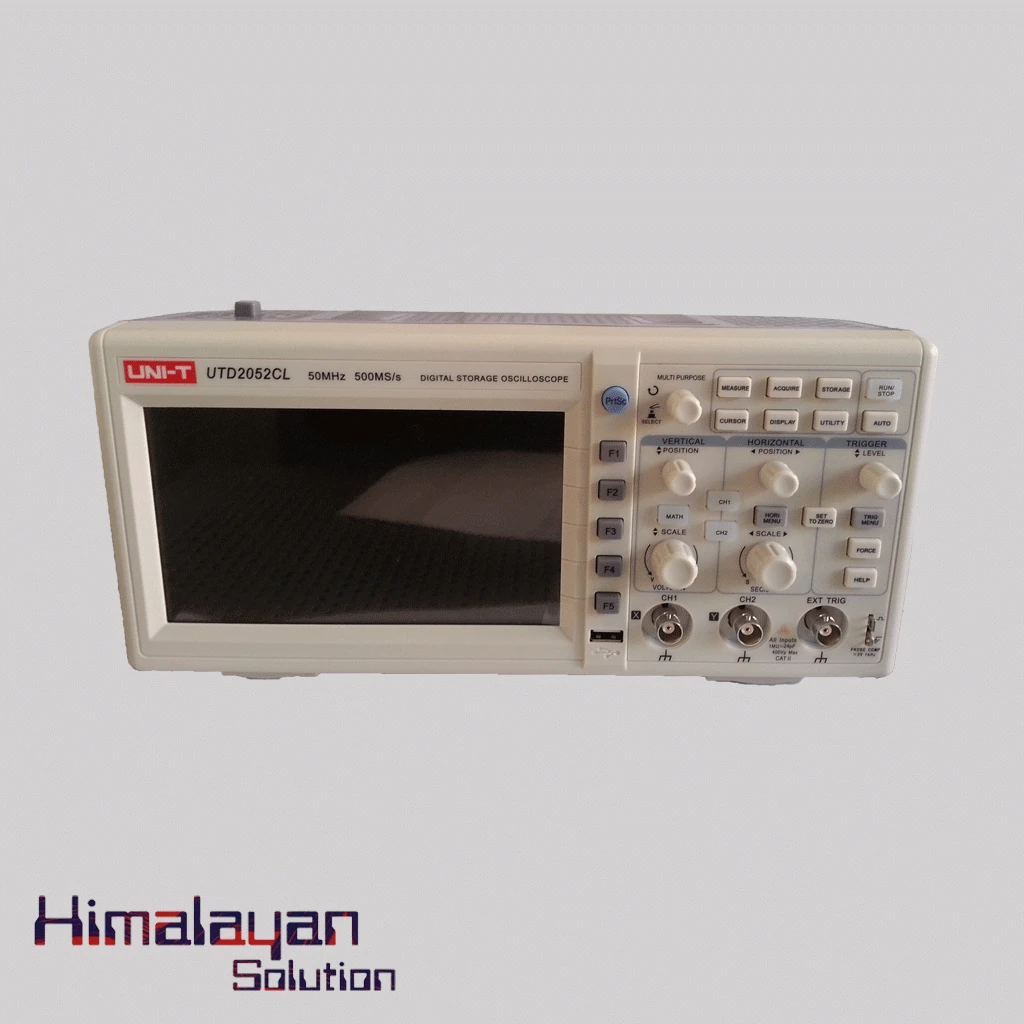

UTD2052CL 50 MHz 500 MSs Oscilloscope

0 /5.0 (0 reviews)
SKU HS832

The Oscilloscope has dual analog channels with width range of 1mV/div~20V/div. The LCD display is 7 inches wide and consists of a special Print Screen Feature. It also supports plug-and-play USB storage device and  can communicate as well as remote control computer using the USB device. It automatically measures 28 wav...

Read more
seller

Inhouse product

  • warranty check circle Cash on delivery available

The Oscilloscope has dual analog channels with width range of 1mV/div~20V/div. The LCD display is 7 inches wide and consists of a special Print Screen Feature. It also supports plug-and-play USB storage device and  can communicate as well as remote control computer using the USB device. It automatically measures 28 waveform parameters and offers unique waveform recording and replay function.

Specifications

18
Name
Oscilloscope
Model
UTD2052CL
Channels
2
Bandwidth
50 MHz
Sample Rate
500 MS/s
Rise Time
≤7ns
Memory Depth
25 kpts
Waveform Acquisition Rate
≥2000wfms/s
Vertical Sensitivity
1mV/div~20V/div
Timebase Range
5ns/div~50s/div
Storage
Setup, Wave, Bitmap
Trigger Modes
Edge, Pluse, Alternate
Interface
USB OTG
Power
100-240VAC, 40-440Hz
Display
7 inches 64K Color TFT LCD, 400×240
Product Color
White and Grey
Weight
2.2 kg
Size (W*H*D)
306*147*122 mm
