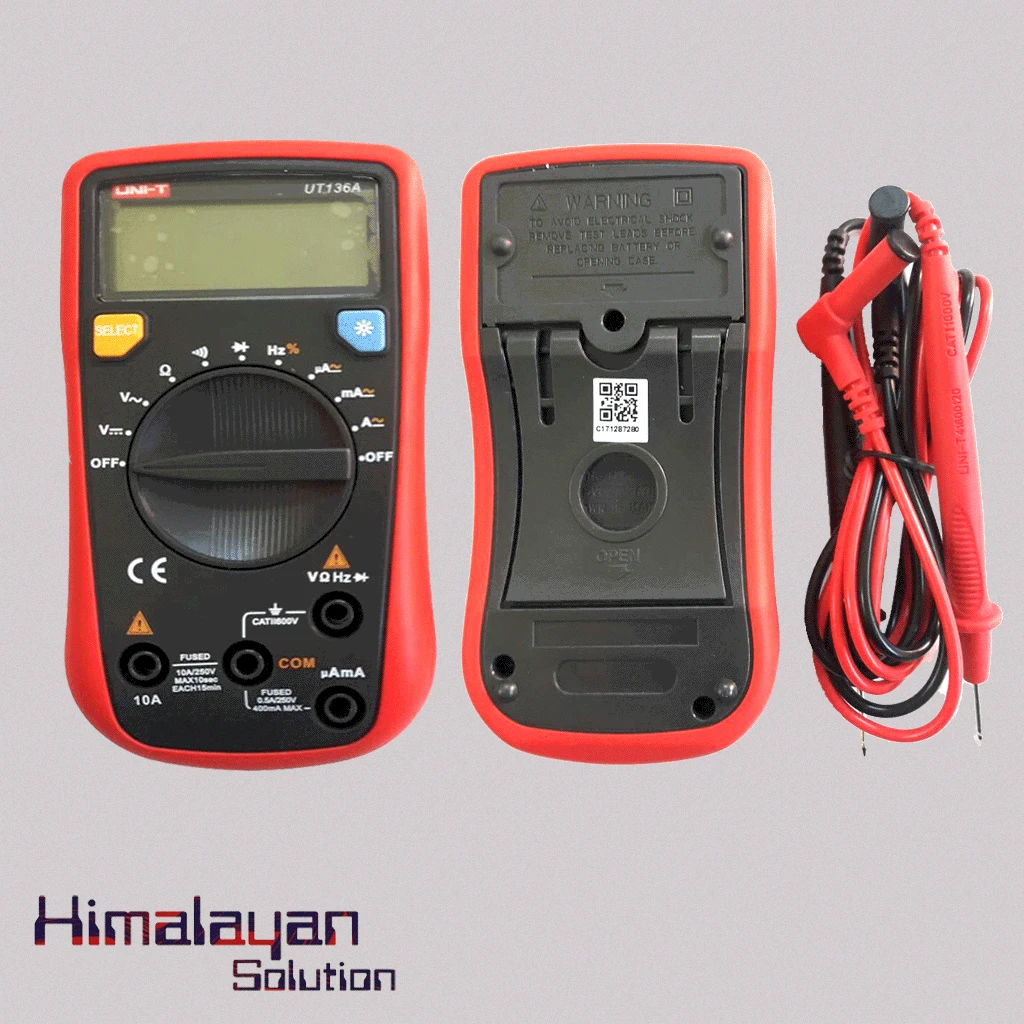

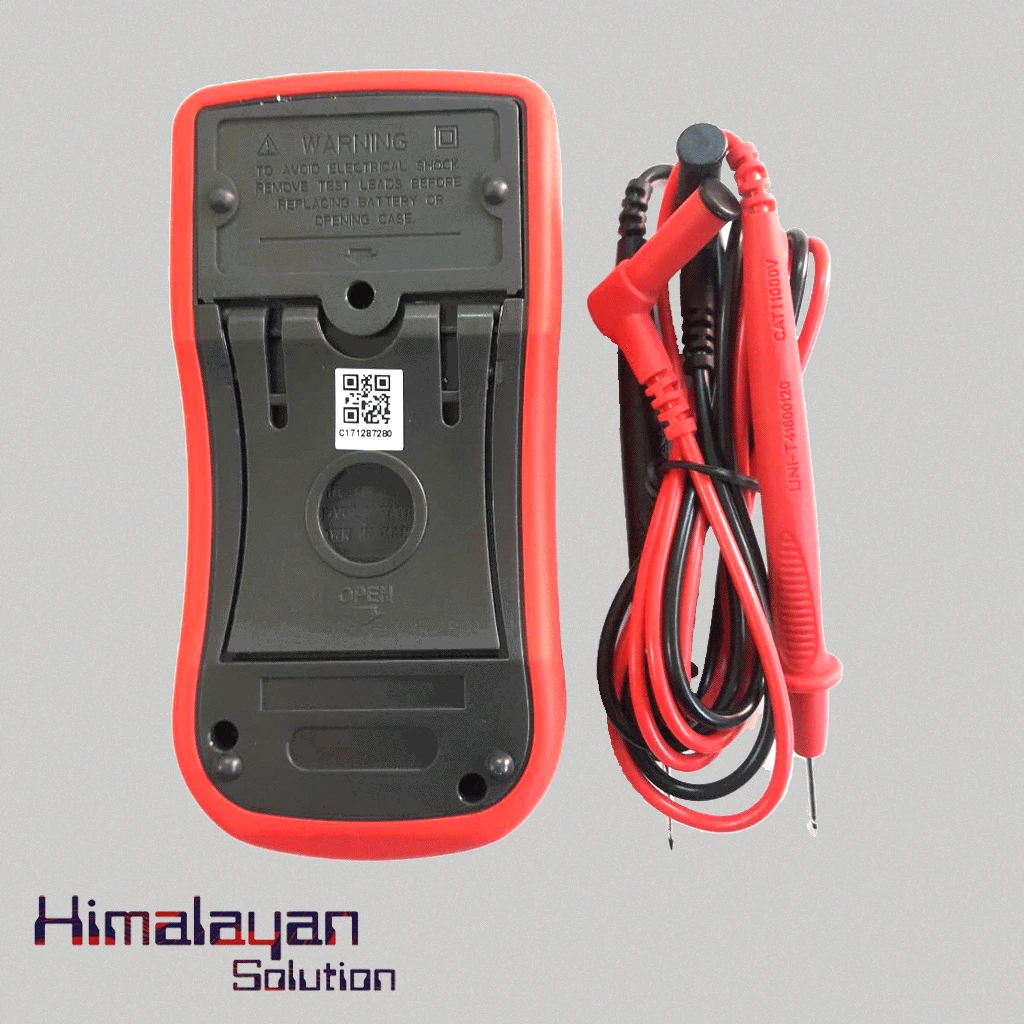

UT 136 A Multi-meter

0 /5.0 (0 reviews)
SKU HS482

UT 136A is a handheld auto ranging digital multimeter. It has novel structural design, high degree of safety and reliability, low power consumption, stable performance. It can measure voltage, current, and resistance, use to trouble shoot electrical problems on different devices such as motor controls, power supplies,...

Read more
seller

Inhouse product

  • warranty check circle Cash on delivery available

UT 136A is a handheld auto ranging digital multimeter. It has novel structural design, high degree of safety and reliability, low power consumption, stable performance. It can measure voltage, current, and resistance, use to trouble shoot electrical problems on different devices such as motor controls, power supplies, wiring system and many more. It also has features like continuity buzzer, auto power off, low battery display, data hold.

Specifications

21
Model
UT136A
Type
Digital Multimeter
LCD Size
49 * 18mm
Max Display
3999
DC Voltage
400mV/4V/40V/400V/500V ±(0.8%+1)
AC Voltage
400mV/4V/40V/400V/500V ±(1.2%+3)
DC Current
400uA/4mA/40mA/400mA/4A/10A ±(1.0%+2)
AC Current
400uA/4mA/40mA/400mA/4A/10A ±(1.2%+5)
Resistance
400Ω/4000Ω/40kΩ/400kΩ/4MΩ/40MΩ ±(1.0%+2)
Frequency
10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz ±(0.5%+3)
Duty Cycle
0.1%∽99.9%
Diode Testing
Yes
Continuity Buzzer
Yes
Auto Power Off
Yes
Low Battery Display
Yes
Input Impedance For DC Voltage Measure
≥10 MΩ
Auto Data Hold
Yes
Battery
9v Battery (Not Included)
Color
Red & Grey
Size
72 * 137 * 35mm
Weight
200 g (Battery Included)
