DS18B20 Temperature Sensor DS 18b20

0 /5.0 (0 reviews)
SKU HS623

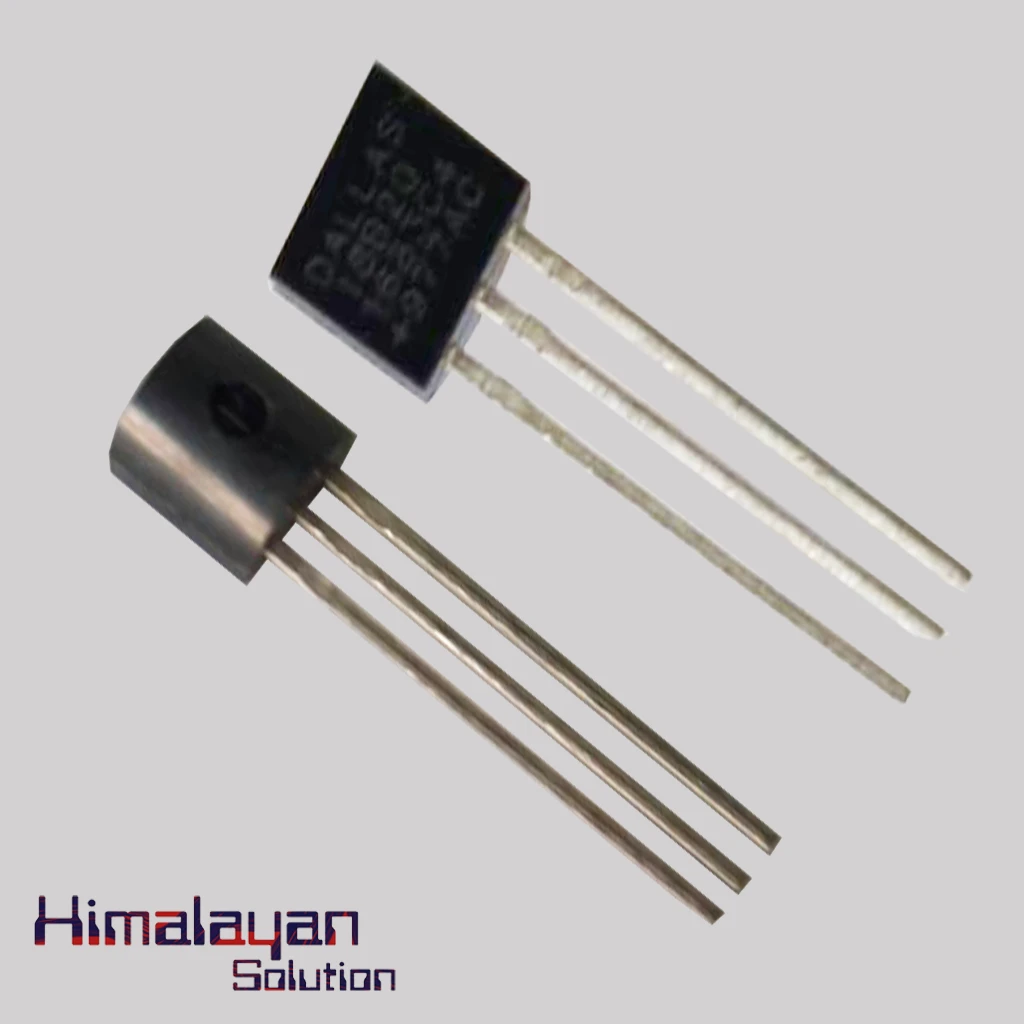

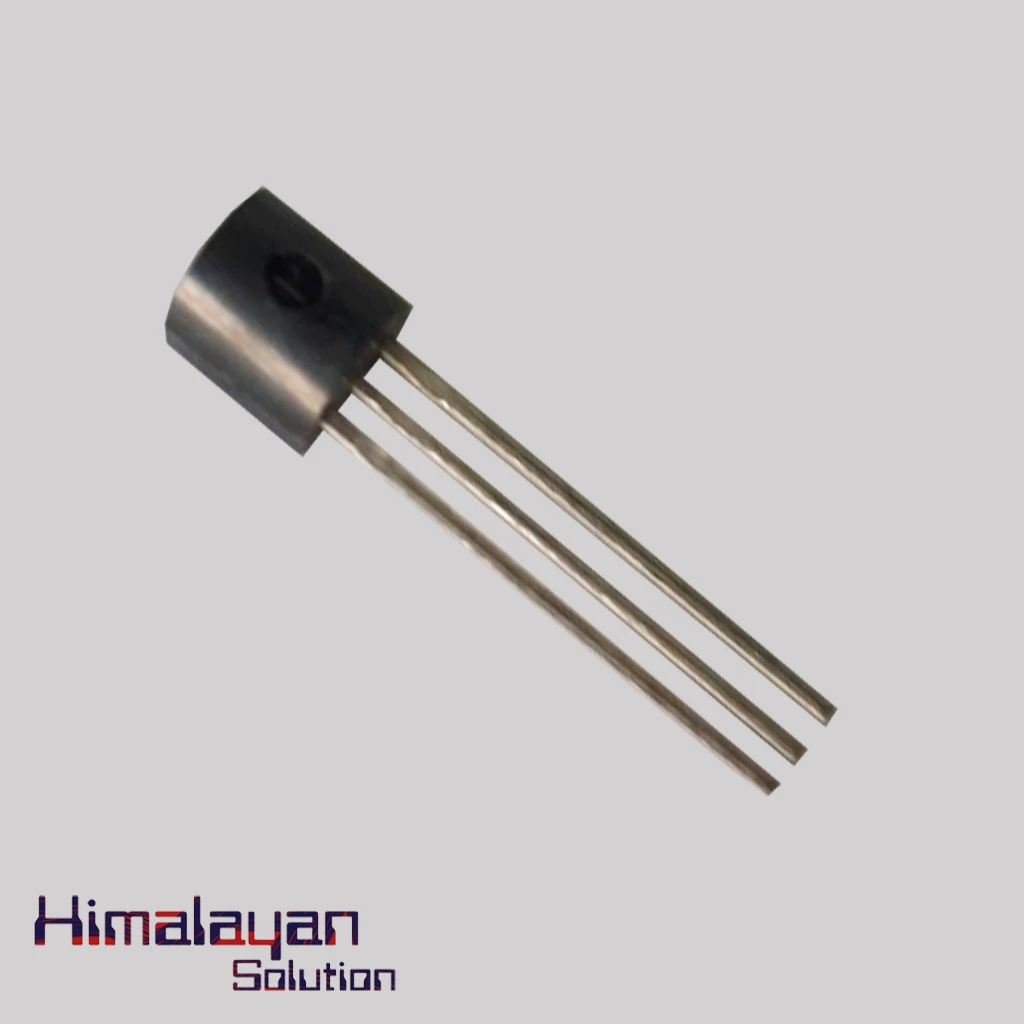

The DS18B20 Sensor IC is a Digital Thermometer Integrated Circuit that provides 9-bit to 12-bit Celsius temperature measurements and also has an alarm function. It has various features like: - Requires no external components, Software compatible with the DS1822, Thermometer resolution is user selectable from 9 to 12 Bi...

Read more
seller

Inhouse product

  • warranty check circle Cash on delivery available

The DS18B20 Sensor IC is a Digital Thermometer Integrated Circuit that provides 9-bit to 12-bit Celsius temperature measurements and also has an alarm function. It has various features like: - Requires no external components, Software compatible with the DS1822, Thermometer resolution is user selectable from 9 to 12 Bits, Unique 1-wire interface requires only one port pin for communication, a unique 64-bit serial code stored in an on-board Rom and many more. It can be suitable for various applications like Thermostatic controls, Industrial systems, Consumer products, Thermometers, or any thermally sensitive system etc.

Specifications

12
Name
DS18B20 Sensor IC
IC Output Type
Digital
Sensing Accuracy Range
± 0.5 ° C
Temperature Detection Range
-55 ° C to +125 ° C
Supply Current
1mA
Supply Voltage Range
3V To 5.5V
Resolution
12bit
Package Type
TO-92
Pin Count
3
Sensor / Transducer Type
Temperature
Chip Label
18B20
Surface Mount Devices
Through Hole
