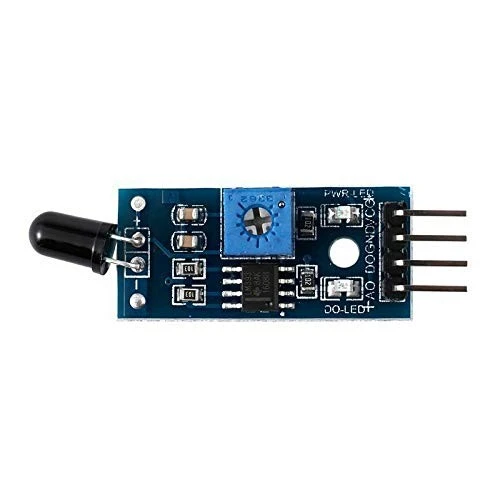

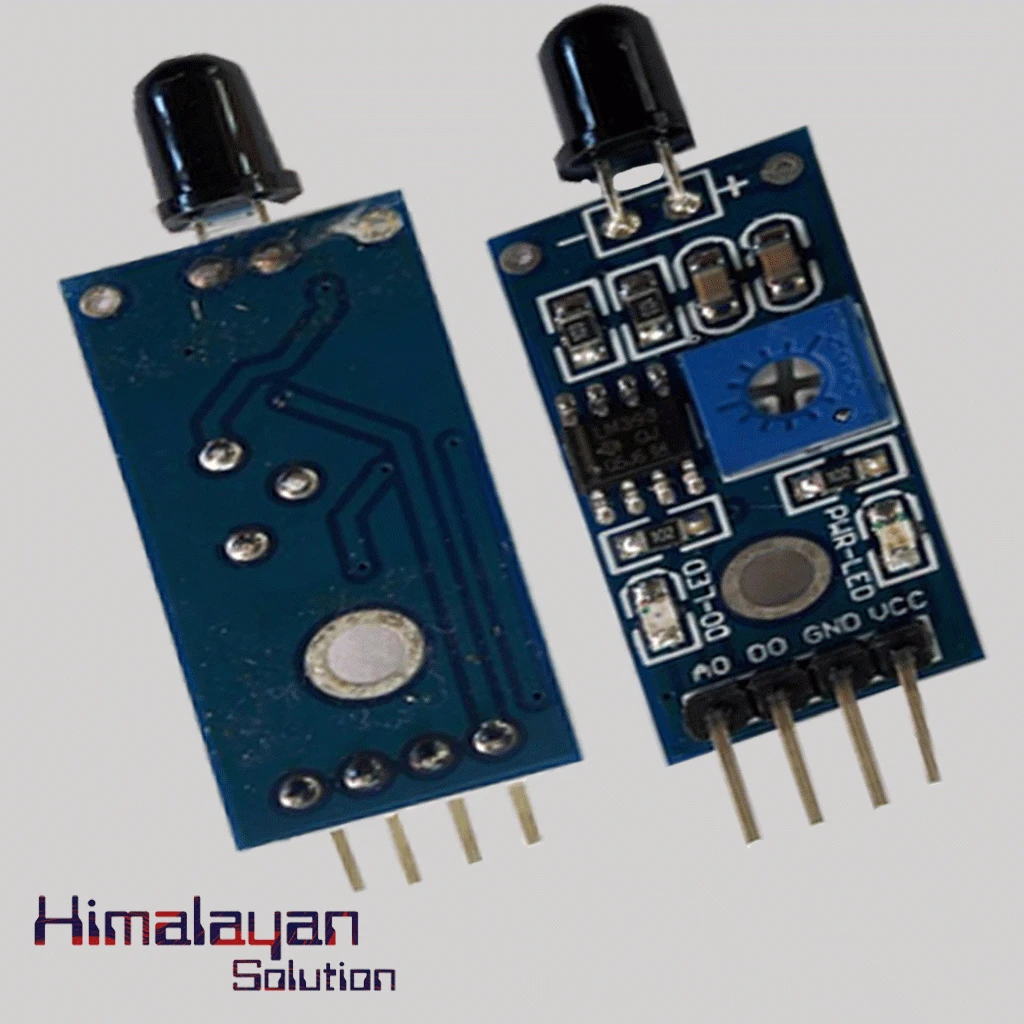

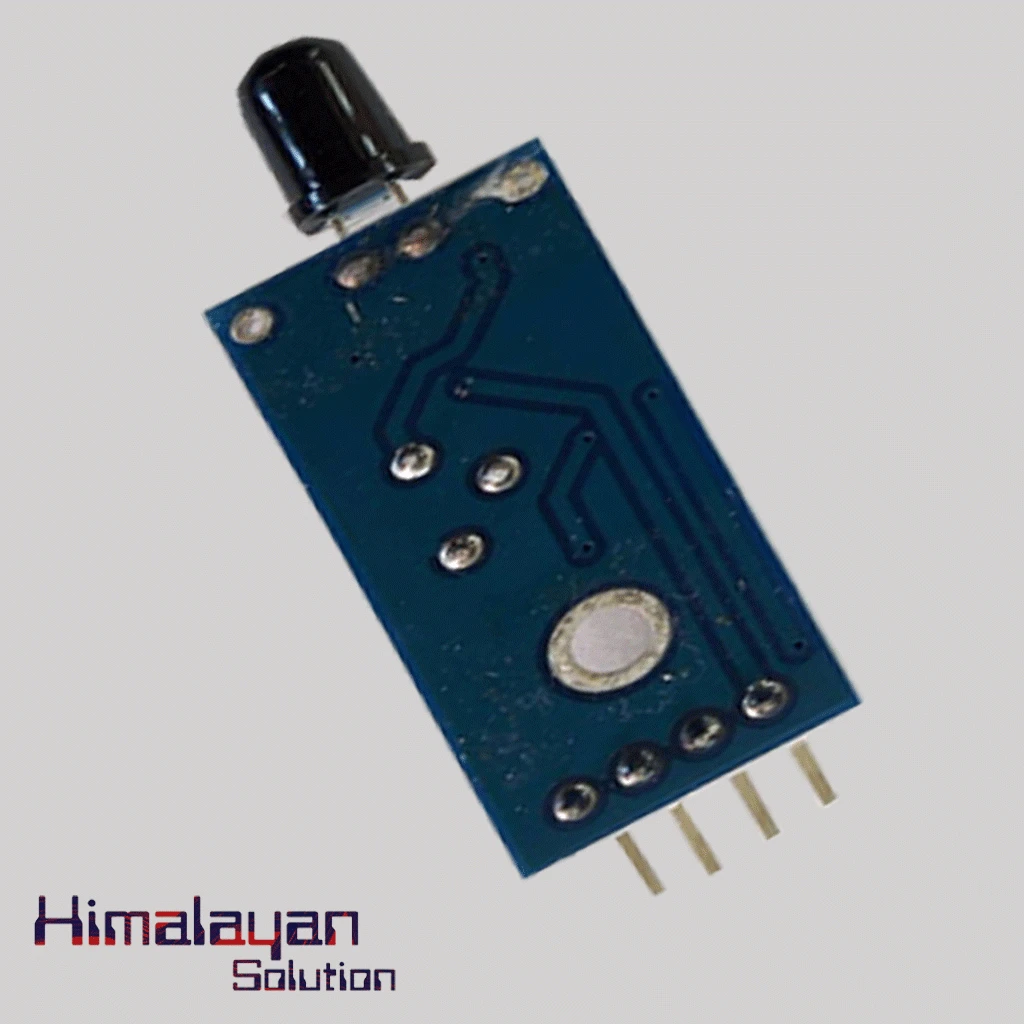

Flame Detection Sensor Module

0 /5.0 (0 reviews)
SKU 1.15

The flame sensor has wavelength of 760nm to 1100nm. It is mostly used in firefighting robot or heat seeking robot for detecting the flame or light source. The detection range of this module is 100cm. It has adjustable detecting range and be easily mountable.It has inbuilt signal output indicator and power indicator.

Read more
seller

Inhouse product

  • warranty check circle Cash on delivery available

The flame sensor has wavelength of 760nm to 1100nm. It is mostly used in firefighting robot or heat seeking robot for detecting the flame or light source. The detection range of this module is 100cm. It has adjustable detecting range and be easily mountable.It has inbuilt signal output indicator and power indicator.

Specifications

11
Supply Voltage
3.3V to 5V
Detection Range
20cm (4.8V) ~ 100cm (1V)
Rang of Spectral Bandwidth
760nm to 1100nm
Responsive Time
15us
Interface
Analog
Size
22x30mm
Detection Distance
20cm (4.8V) ~ 100cm (1V)
Detection Angle Degree
0 - 60 degree
Operating temperature:
25℃ ~ 85℃
Mounting holes size
2.0mm
Dimension
27.3mm * 15.4mm
