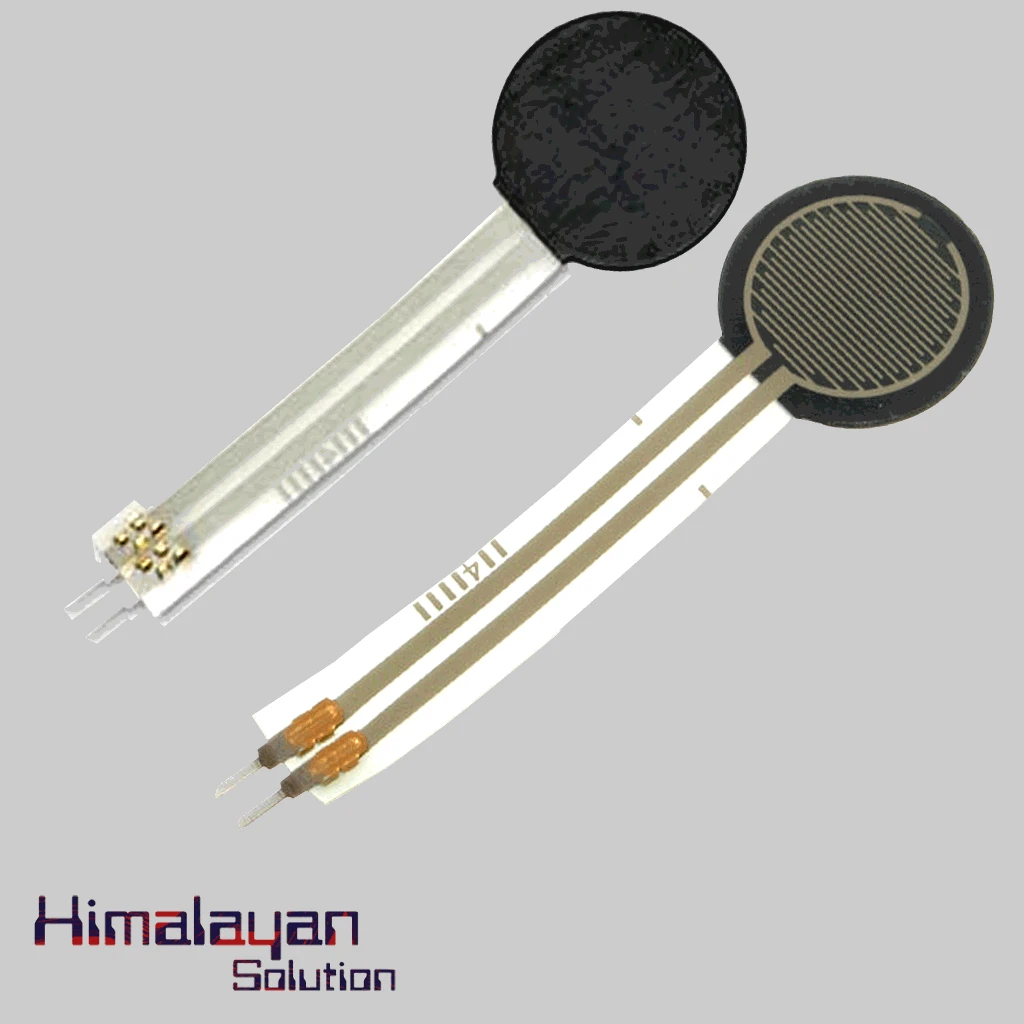

Force Sensitive Resistor (FSR) Sensor Small

0 /5.0 (0 reviews)
SKU HS110

The Force Sensitive Resistor (FSR)   sensor changes its resistive value depending on how much force is applied. It allows you to detect physical pressure, weight, squeezing. It helps in measuring the amount of forced applied on the sensor. It can be used in Biomechanics, Kinematics, Human – computer interaction, roboti...

Read more
seller

Inhouse product

  • warranty check circle Cash on delivery available

The Force Sensitive Resistor (FSR)   sensor changes its resistive value depending on how much force is applied. It allows you to detect physical pressure, weight, squeezing. It helps in measuring the amount of forced applied on the sensor. It can be used in Biomechanics, Kinematics, Human – computer interaction, robotics & cybernetics and many more.

Specifications

17
Max Force Detection
Up TO 22lbs (up to 10N)
Actuation Force
0.1N
Force Sensitivity Range
0.1 - 10.02 Newtons
Single Part Force Repeatability
± 2%
Resolution
Continuous
Part to Part Force Repeatability
±6%
Non-Actuated Resistance
10M W
Thickness Range
0.2 - 1.25 mm
Stand-Off Resistance
>10M ohms Unloaded, unbent
Switch Travel (Typical)
0.05 mm Depends on design
Hysteresis:
+/- 10%
Device Rise Time
<3 microseconds
Long Term Drift
<5% per log(time)
Operating Temperature (Recommended)
-30 - +70 ºC
Number of Actuations (Life time)
10 Million tested without failure
Active Area Diameter
0.5”
Weight
0.15 g
