Gy 87 Sensor

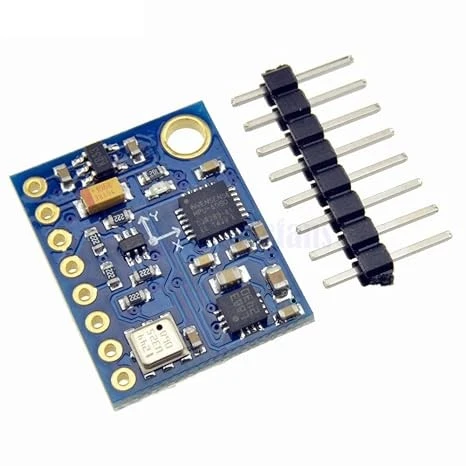

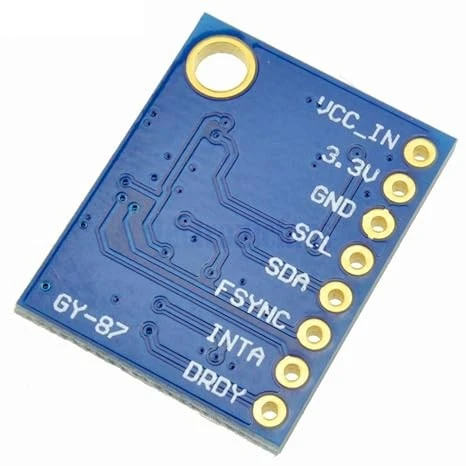

The HW-290/GY-87 10DOF Sensor Fusion Module is a small board that combines a triaxial gyroscope, a triaxial accelerometer, a triaxial magnetic field, and a barometer. On the board is also a filter, which reduces the noise of the motor. It is used for GPS-navigation, free-fall detection, FPV, RC, and robot systems.

Means of communication: IIC communication protocol (fully compatible with 3-5v system containing LLC circuit

• ntegrates three sensors for comprehensive data acquisition
• MPU6050 for 3-axis accelerometer and 3-axis gyroscope
• HMC5883L for 3-axis magnetometer
• BMP180 for barometric pressure and temperature measurement
• I2C communication interface for easy integration
• Compact design for integration into various project

• MPU6050:
  • Sensor Type: 3-axis accelerometer and 3-axis gyroscope
  • Measurement Range:
    • Accelerometer: ±2g, ±4g, ±8g, ±16g
    • Gyroscope: ±250, ±500, ±1000, ±2000 degrees/second
  • Communication Interface: I2C
  • Operating Voltage: 3.3V to 5V DC
• HMC5883L:
  • Sensor Type: 3-axis magnetometer
  • Measurement Range: ±1.3 to ±8.1 Gauss
  • Communication Interface: I2C
  • Operating Voltage: 3.3V to 5V DC
• BMP180:
  • Sensor Type: Barometric pressure and temperature sensor
  • Pressure Range: 300 to 1100 hPa
  • Temperature Range: -40°C to +85°C
