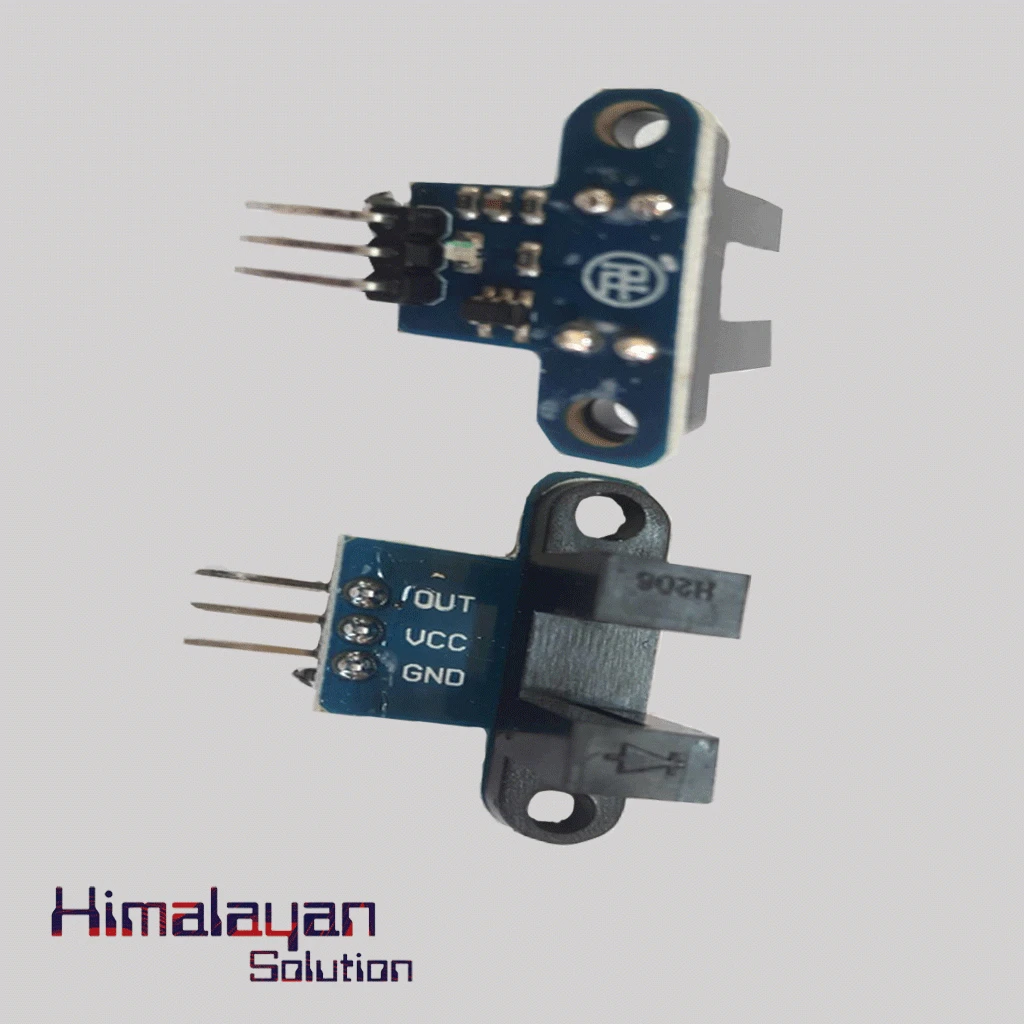

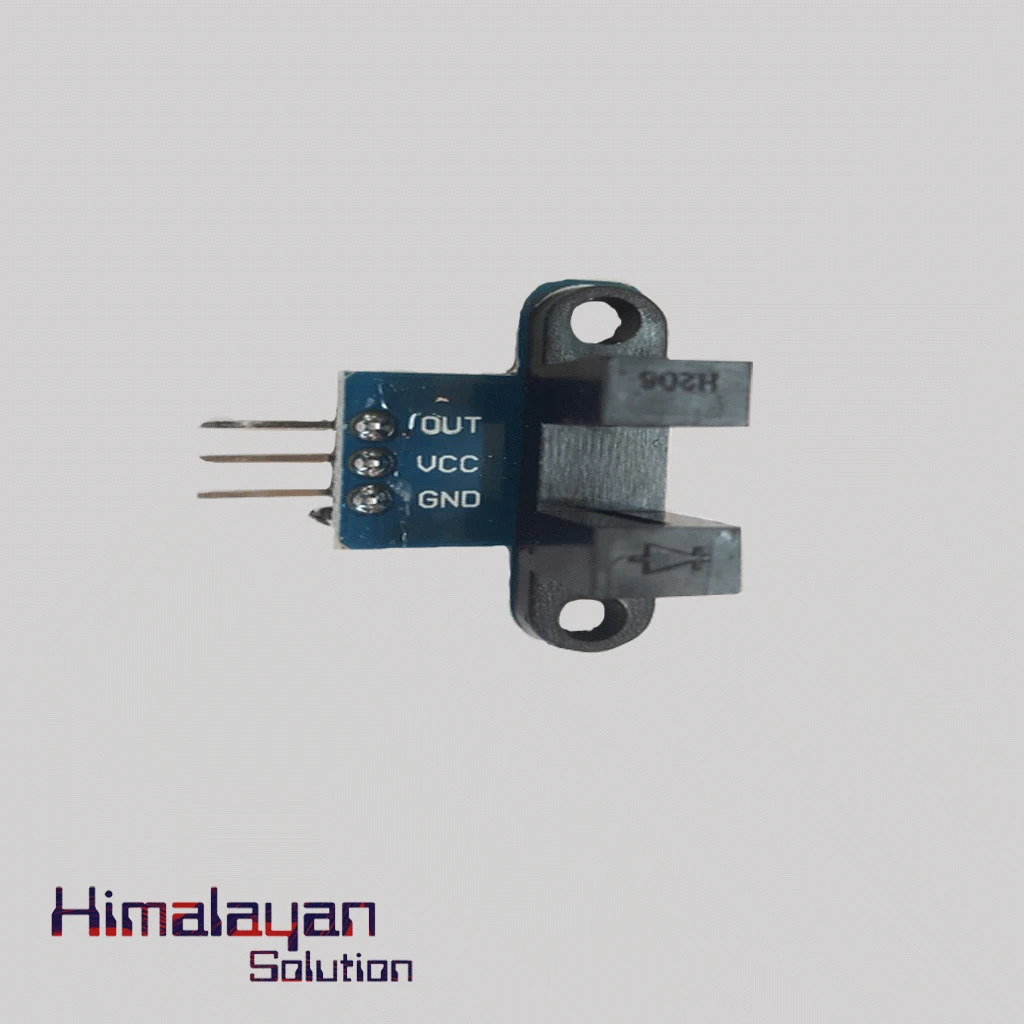

H206 Speed Measuring Sensor Module

0 /5.0 (0 reviews)
SKU HS202

H206  Speed Measuring Sensor Module is used to  detect the speed of  an object with H206 Fiber glass photo coupler having operating voltage 5v  where speed encoder included used schmitt triggered output for noise immunity.Blocking output is low and non-blocking output is high with operating temperature -20°C - 65°C.

Read more
seller

Inhouse product

  • warranty check circle Cash on delivery available

H206  Speed Measuring Sensor Module is used to  detect the speed of  an object with H206 Fiber glass photo coupler having operating voltage 5v  where speed encoder included used schmitt triggered output for noise immunity.Blocking output is low and non-blocking output is high with operating temperature -20°C - 65°C.

Specifications

13
Reverse Voltage (Bipolar )
5V
Forward Current
60mA
Collector Emitter Breakdown Voltage
25V
Emitter Base Breakdown Voltage
5V
Forward Voltage (Diode)
1.5V Max
Reverse Current
10uA Max
Collector Emitter Leakage Current
1uA Max
Conduct Current
250uA Min
Saturated Voltage
0.4V Max
Rising Edge Delay
10us
Falling Edge Delay
10us
DC Current Transfer Ratio
10% Min
Operating Voltage
5V
