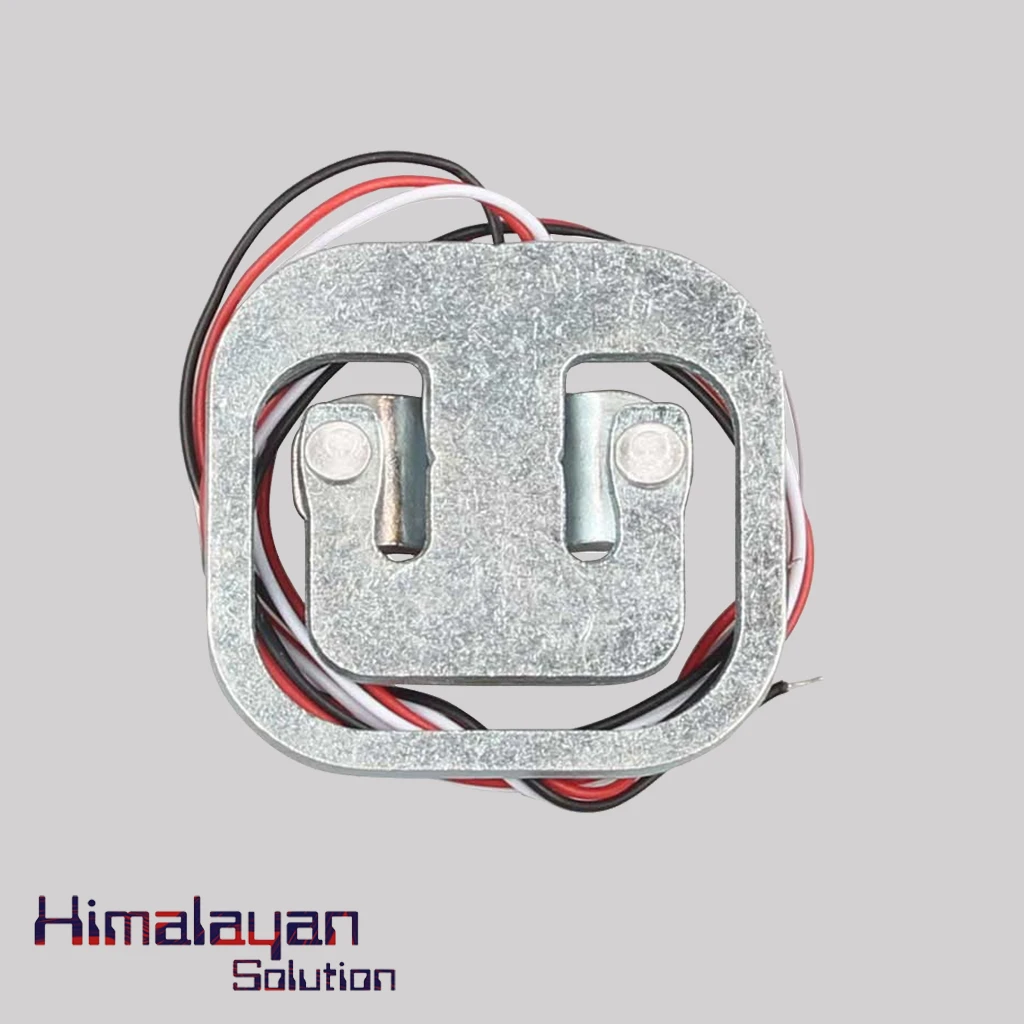

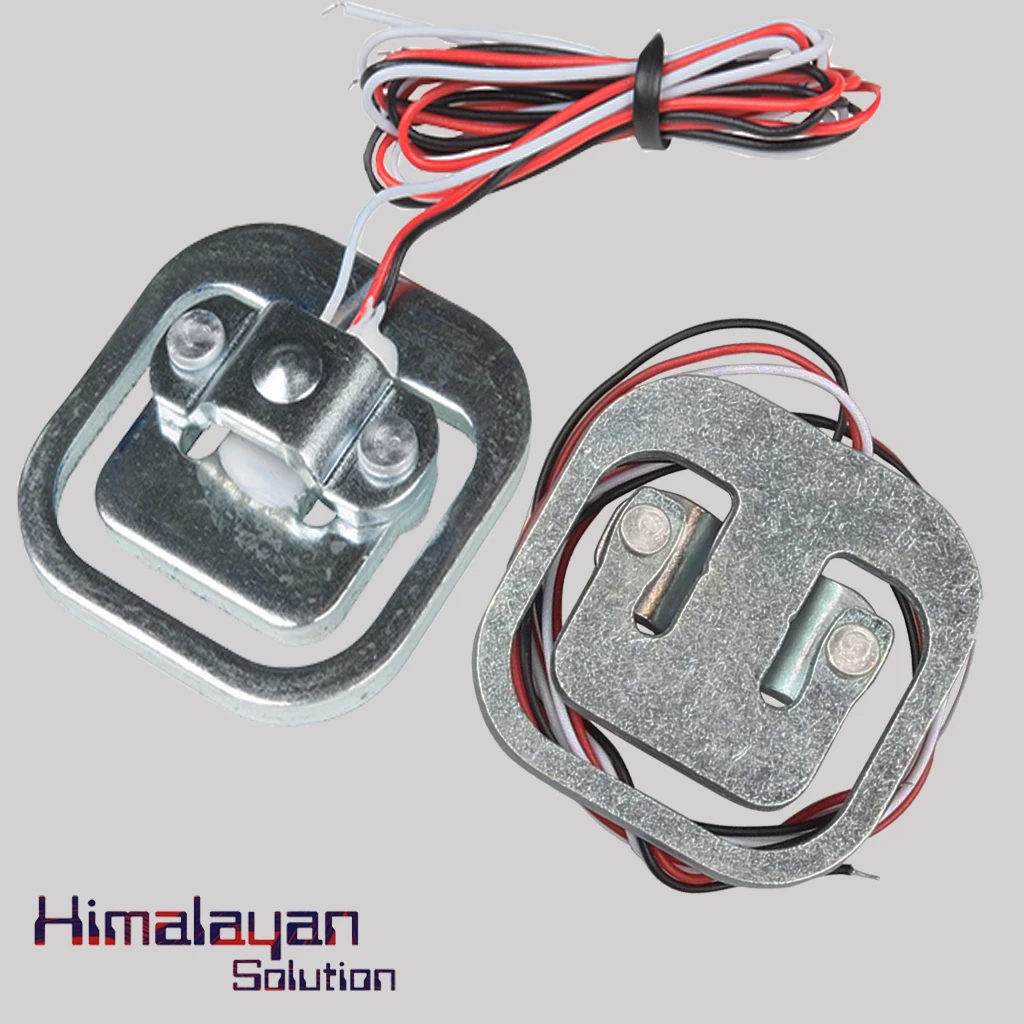

Human Body Weight Sensor

0 /5.0 (0 reviews)
SKU HS193

The Weight sensor also known as load cell is made up of aluminum – alloy designed to measure force in one direction. It has maximum capacity of 50 KG reading. It ignores other force applied while is measure the specific force. It is applicable mostly for measuring  human body weight . It required a load cell amplifier...

Read more
seller

Inhouse product

  • warranty check circle Cash on delivery available

The Weight sensor also known as load cell is made up of aluminum – alloy designed to measure force in one direction. It has maximum capacity of 50 KG reading. It ignores other force applied while is measure the specific force. It is applicable mostly for measuring  human body weight . It required a load cell amplifier such as a  HX711 load cell amplifier , or spark fun open scale or 1046 Phidget Bridge for electrical signal output.

Specifications

14
Capacity
50kg
Material
Aluminium Alloy
Max Excitation Voltage
10V DC
Rated Output
1 ±0.15mV/V
Overall Precision
0.05%F.S
Input/Output Resistance
1000 ± 20 Ohm
Recommend Excitation Voltage
5V DC
Insulation Resistance
2000 Ohm
Working Temperature
-10°C ~ +55°C
Safety Overload
1.2
Level Of Protection
IP65
Cable Length
150mm/ 6\'\'
Total Size
24 x 28 x 6mm
Weight
32g
