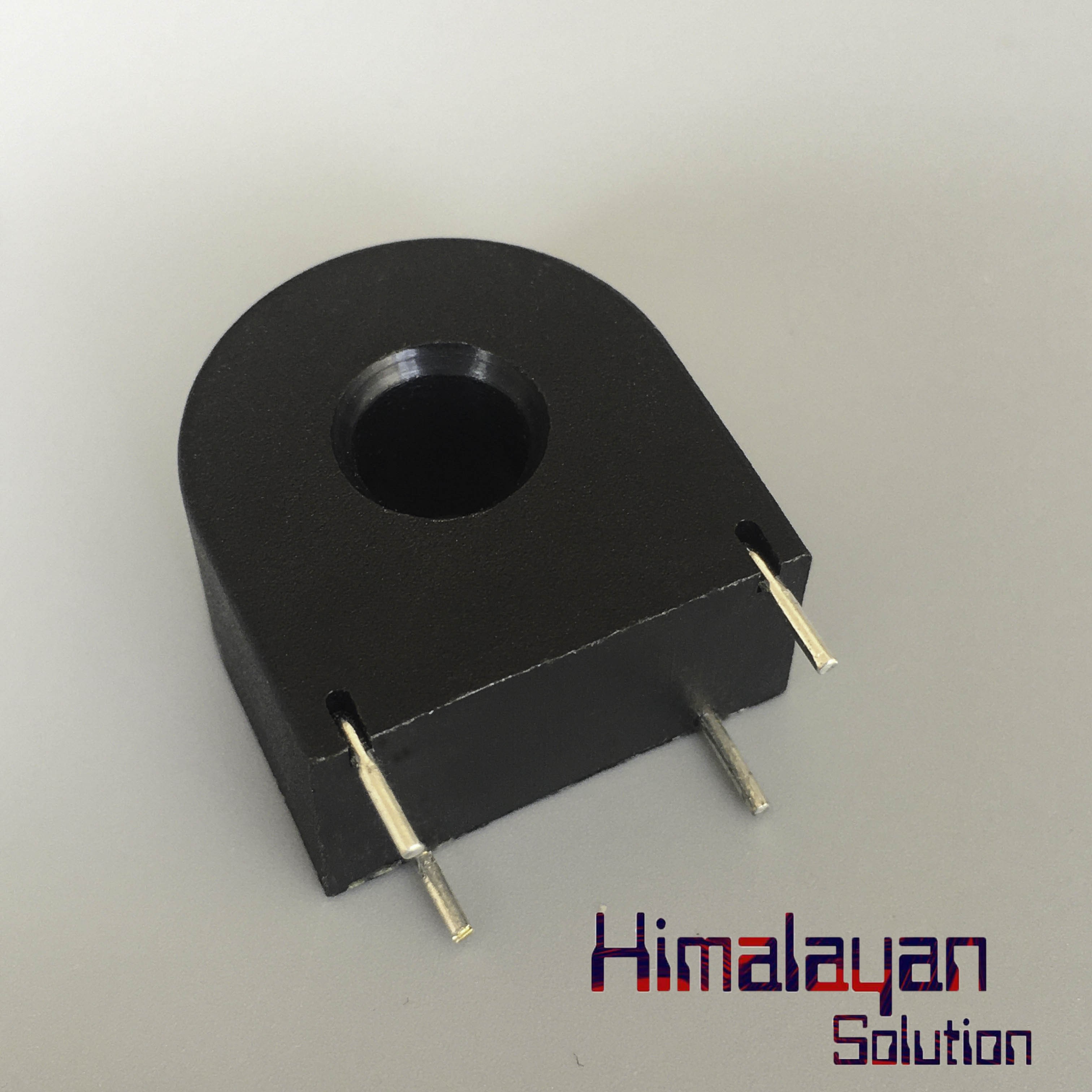

HWCT 5/5ma Current Transformer

0 /5.0 (0 reviews)
SKU HS 1491

Easy to use the module, this HWCT 5A/5MA Micro Current Transformer sensor has a 1:1000 turns ratio meaning for every 5A of current flowing through the conductor, 5mA will flow through the CT.

Read more
seller

Inhouse product

  • warranty check circle Cash on delivery available

Easy to use the module, this HWCT 5A/5MA Micro Current Transformer sensor has a 1:1000 turns ratio meaning for every 5A of current flowing through the conductor, 5mA will flow through the CT.

To measure volts from a microcontroller analog pin a resistor needs to be connected across the two terminals of the CT to allow a voltage to be measured across it. A 220 Ohm resistor, using Ohm’s law V=IR, the output of the CT will be 1.1 Volts AC, for every 5mA of CT current (or every 5A of measured current).

Specifications

5
Operating current up to
5A
Maximum current
20A
Turns ratio
1:2500
Current ratio:
5A:2mA
DC resisstance
155 ohm
