Microphone Module Red

0 /5.0 (0 reviews)
SKU HS217

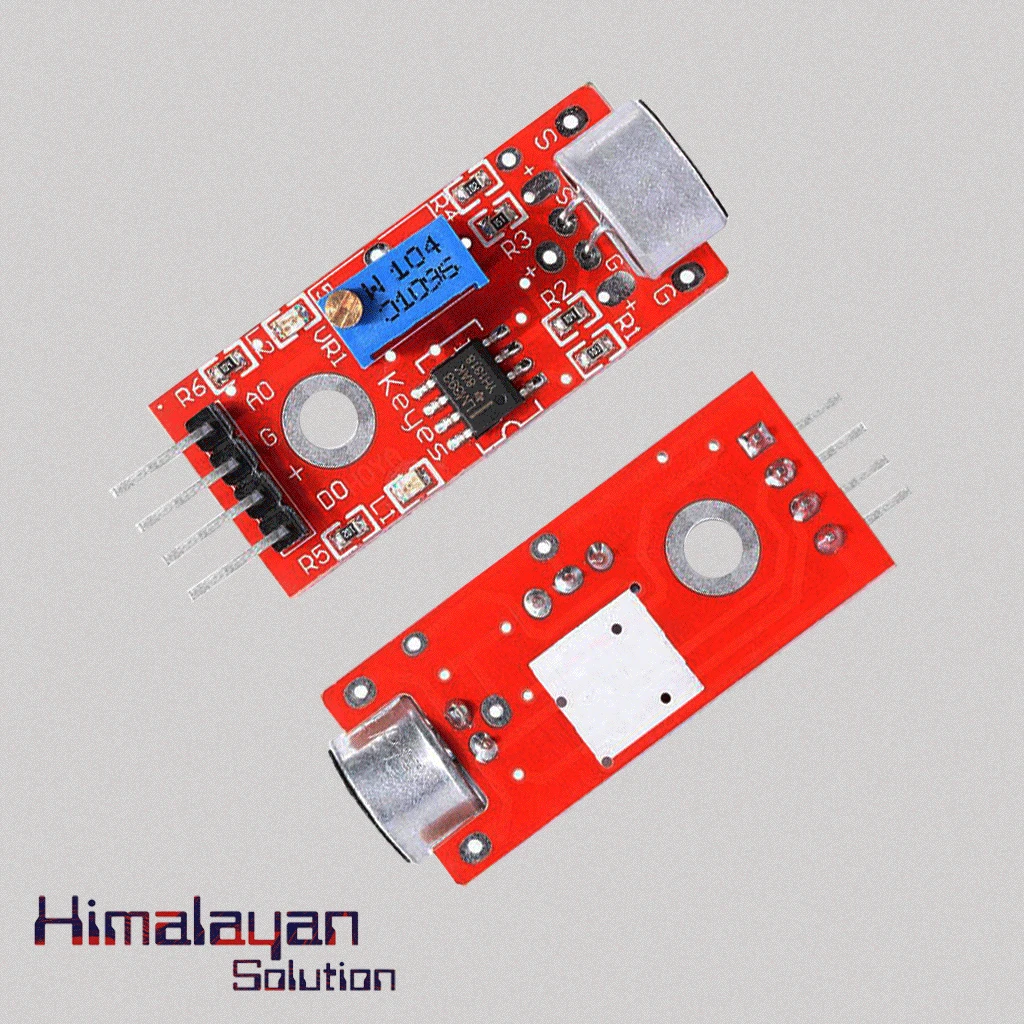

Microphone  Module is a sensor used for sound detection with  mounting screw hole contains digital threshold comparater sound detection module has two output AO, analog output, real-time output voltage signal of the microphone DO, when the sound intensity reaches a certain threshold, the output high and low signal and...

Read more
seller

Inhouse product

  • warranty check circle Cash on delivery available

Microphone  Module is a sensor used for sound detection with  mounting screw hole contains digital threshold comparater sound detection module has two output AO, analog output, real-time output voltage signal of the microphone DO, when the sound intensity reaches a certain threshold, the output high and low signal and Adopts LM393 main chip.

Specifications

12
Operating voltage
3.3V-5V
Output Model
digital switch outputs (0 and 1, high or low level)
PCB Size
3.4cm * 1.6cm
Frequency Range(Microphone)
100 ~ 10,000 Hz.
Sensitivity
 - 46 ± 2.0, ( 0 dB = 1V / Pa ) at 1K Hz.
Power Supply
5V maximum
Minimum Sensitivity to Noise Ratio
58dB
Height
4.5mm
Sensitivity
Adjustable via trim pot
Poperating Voltage
0-5VDC(analog)
Dimensions(l*W*H)
43*16*13
Weight
0.7 grams
