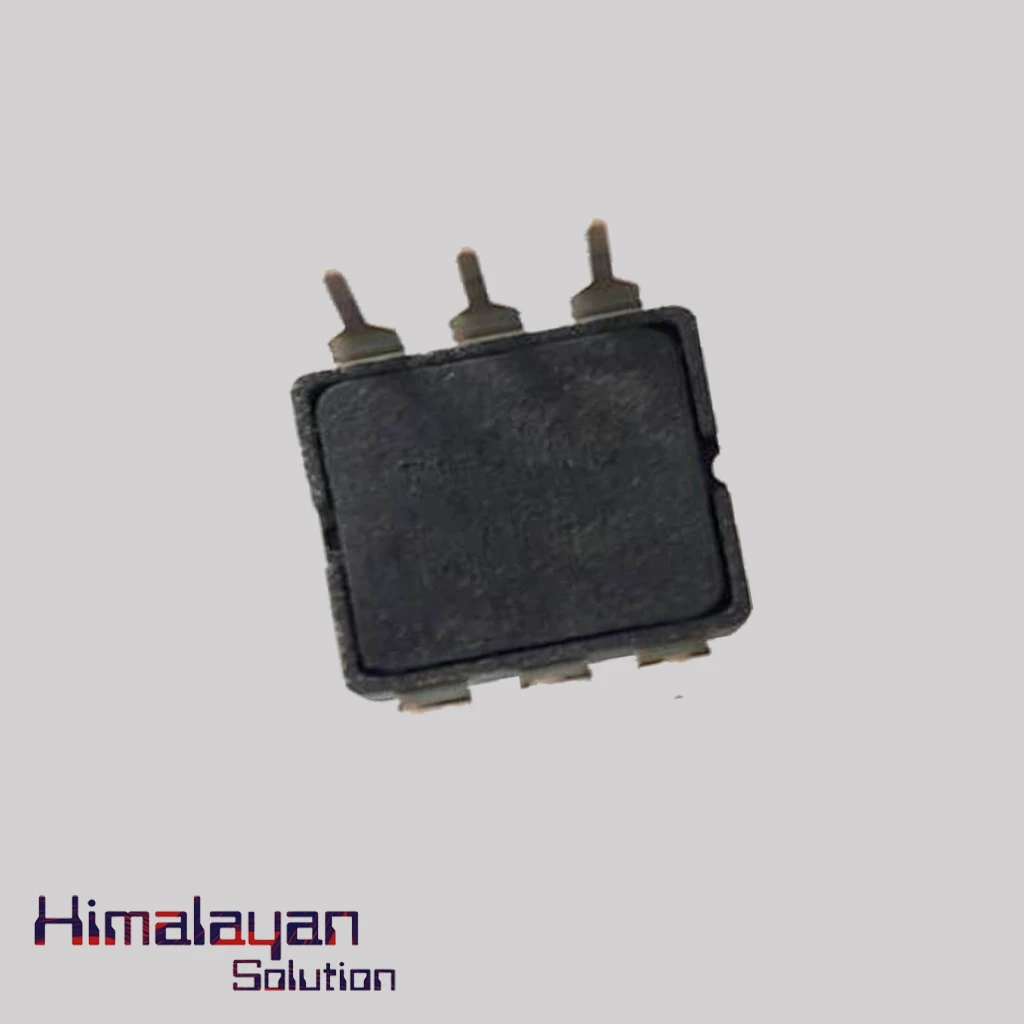

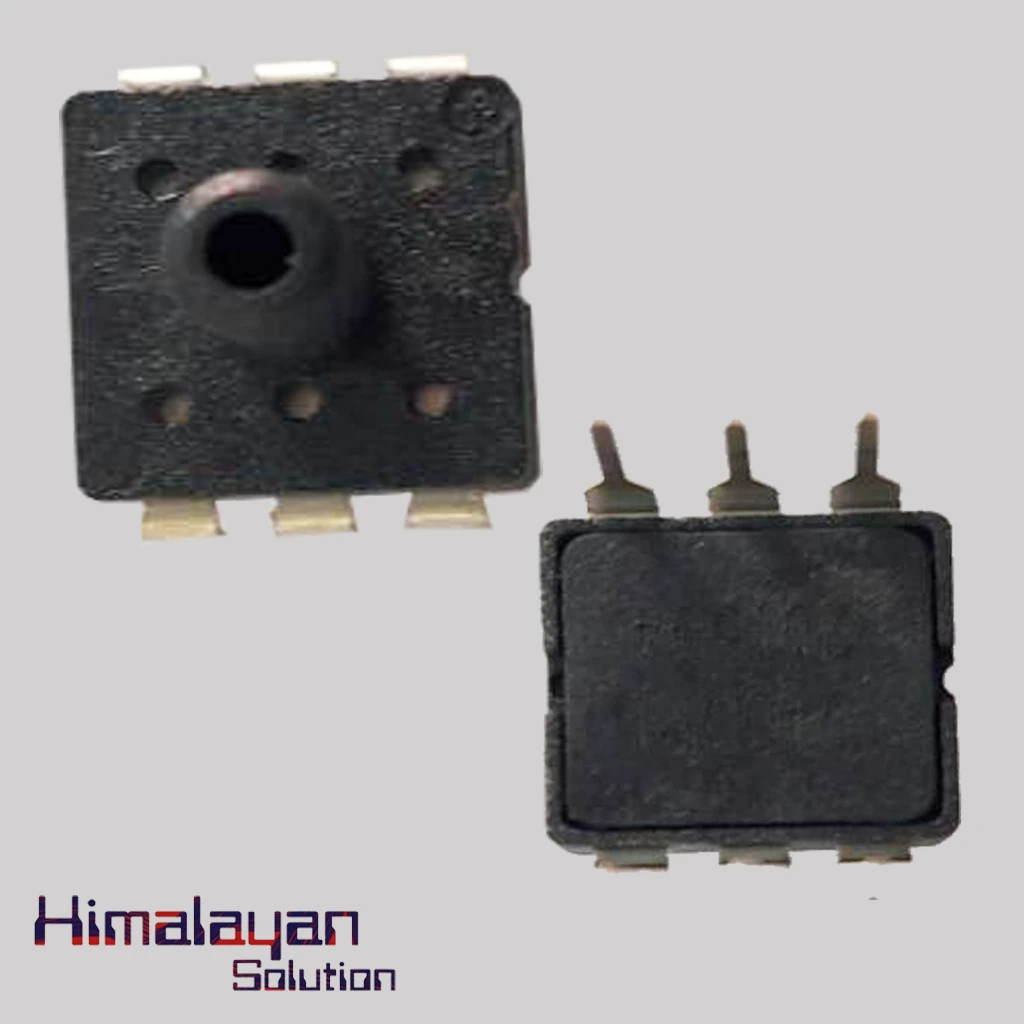

Pressure Sensor

0 /5.0 (0 reviews)
SKU HS396

The Pressure Sensor is a silicon material pressure sensor module with 6-pins. It produces a voltage output that is linearly proportional to the input pressure. It can be applicable in various fields like: - Blood pressure meter, Digital pressure gauges, Environmental monitoring, consumer and sports and many more.

Read more
seller

Inhouse product

  • warranty check circle Cash on delivery available

The Pressure Sensor is a silicon material pressure sensor module with 6-pins. It produces a voltage output that is linearly proportional to the input pressure. It can be applicable in various fields like: - Blood pressure meter, Digital pressure gauges, Environmental monitoring, consumer and sports and many more.

Specifications

13
Name
Pressure Sensor
Measuring Medium
Air
Measuring Range
0-40kPa
Operating Temperature Range
-40 ℃ ~ + 125 ℃
Storage Temperature
-40 ℃ ~ + 150 ℃
Humidity
(50% ± 10%) RH
Ambient Temperature
(25 ± 1) ℃
Medium Temperature
(25 ± 1) ℃
Output Impedance
4kΩ ~ 6kΩ
Zero Output
-15mV~+15mV
Hysteresis
+-0.7%F.S.
Power Supply
≤10V DC or ≤2.0mA DC
Insulation Resistance
100MΩ, 100VDC
