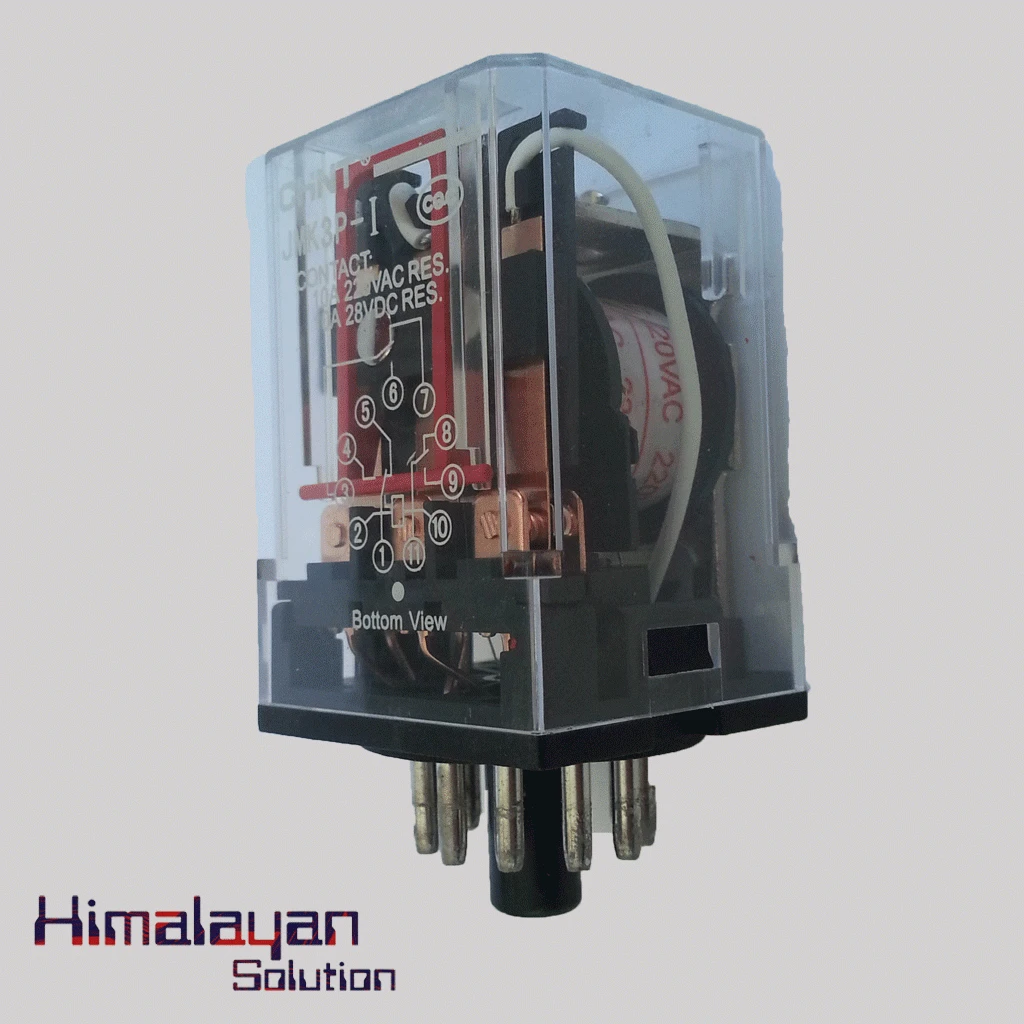

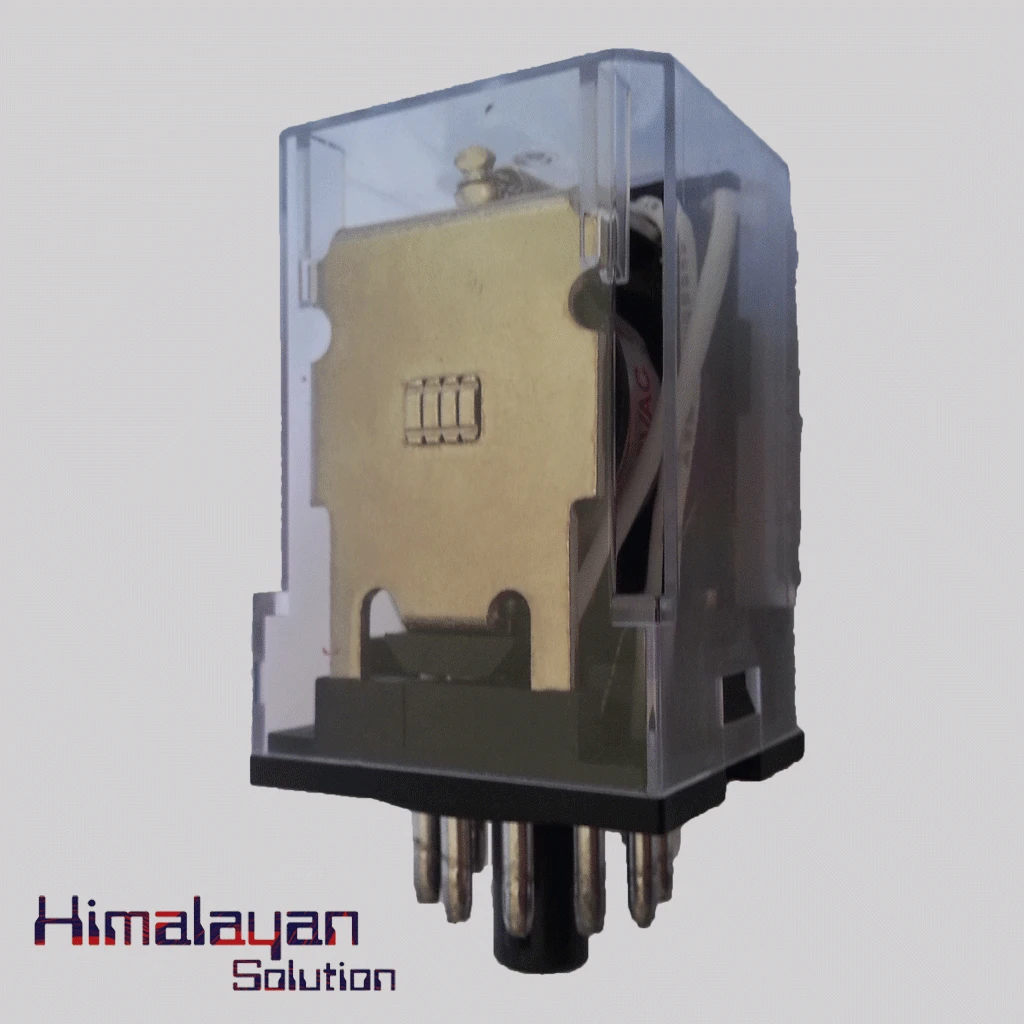

Relay 220 V

0 /5.0 (0 reviews)
SKU HS831

The 220 V Relay can be widely used in remote control, communication equipments, electronic equipments as well as automatic control system and tools. It has a very low cost but offers high quality.

Read more
seller

Inhouse product

  • warranty check circle Cash on delivery available

The 220 V Relay can be widely used in remote control, communication equipments, electronic equipments as well as automatic control system and tools. It has a very low cost but offers high quality.

Specifications

14
Name
220V Relay
Dimension
35*35*53 mm
Weight
76 g
Ambient Temperature
-25° C to 55° C
Terminal Type
Plug In
Contact Material
Silver Alloy
Contact Capacity
10A/250V AC 28V DC
Coil Power
DC≤2W, AC≤3.5VA
Coil Voltage
220V AC
Pick-up Voltage at 23℃
DC≤75%, AC≤80%
Drop-out Voltage at 23℃
DC≥10%, AC≥30%
Contact Resistance@6V DC 1A
≤100MΩ
Leakage current
≤1mA
Insulation Resistance(MΩ)
≥500MΩ at 500V DC
