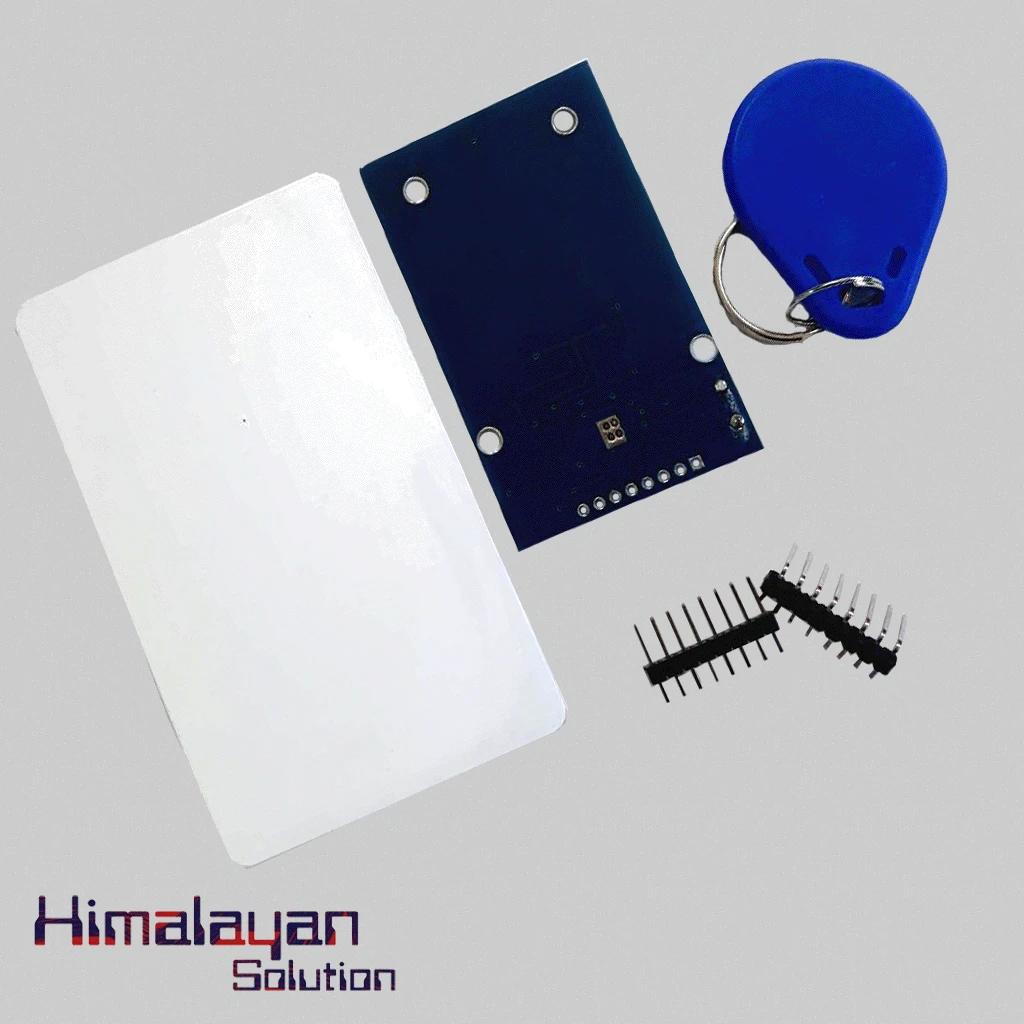

RFID Reader RC 522

0 /5.0 (0 reviews)
SKU 2.96( Rfid module set rc522 84716090)

The RFID RC522 use MFRC522 chip designed circuit card reader. It is a highly transmission module for contact less communication. It is suitable for portable handheld devices and smart meters. It consumes low voltage, supports rapid CRYPTO1 encryption algorithm, terminology validation MIFARE products.  It Support ISO144...

Read more
seller

Inhouse product

  • warranty check circle Cash on delivery available

The RFID RC522 use MFRC522 chip designed circuit card reader. It is a highly transmission module for contact less communication. It is suitable for portable handheld devices and smart meters. It consumes low voltage, supports rapid CRYPTO1 encryption algorithm, terminology validation MIFARE products.  It Support ISO14443A frames and error correction with 14443A compatible answer signal.  This module has two-way data transmission rate up to 424kbit/s.  It can be used for taking attendance and many card read/ write projects. Using SPI protocol it can be can be directly loaded into the various reader molds.

Features:

  • Current :13-26mA / DC 3.3V, Idle Current :10-13mA / DC 3.3V, Sleep current: <80uA, Peak current: <30mA
  • Operating Frequency: 13.56MHz
  • Supported card types: mifare1 S50, mifare1 S70, mifare UltraLight, mifare Pro, mifare Desfire
  • Physical Characteristics: Dimensions: 40mm × 60mm
  • Module Interface SPI Parameters
  • Data Transfer Rate: Max. 10Mbit/s

Package Includes:

  • 1 x RFID READER/WRITER 13.56MHZ RC522 (ARDUINO COMPATIBLE)

Specifications

19
Module Name
MF522-ED
Chip Based Board
MFRC522
Working Current
13—26mA/ DC 3.3V
Standby Current
10-13mA/DC 3.3V
Sleeping Current
<80uA
Peak Current
<30mA
Operating Frequency
13.56MHz
Supply Voltage
3.3V
Current
13-26mA
Read Range
Approx 3cm With Supplied Card and Fob
Interface
SPI
Max Data Transfer Rate
10Mbit / s
Card Reading Distance
0~60mm(Mifare1 Card)
Working Temperature
-20—80 Degree
Storage Temperature
-40—85&nbsp;Degree
Humidity
Relevant Humidity 5%—95%
Tag Card Included
Yes
Blue Tag Module Included
Yes
Pin Header Included
Yes
