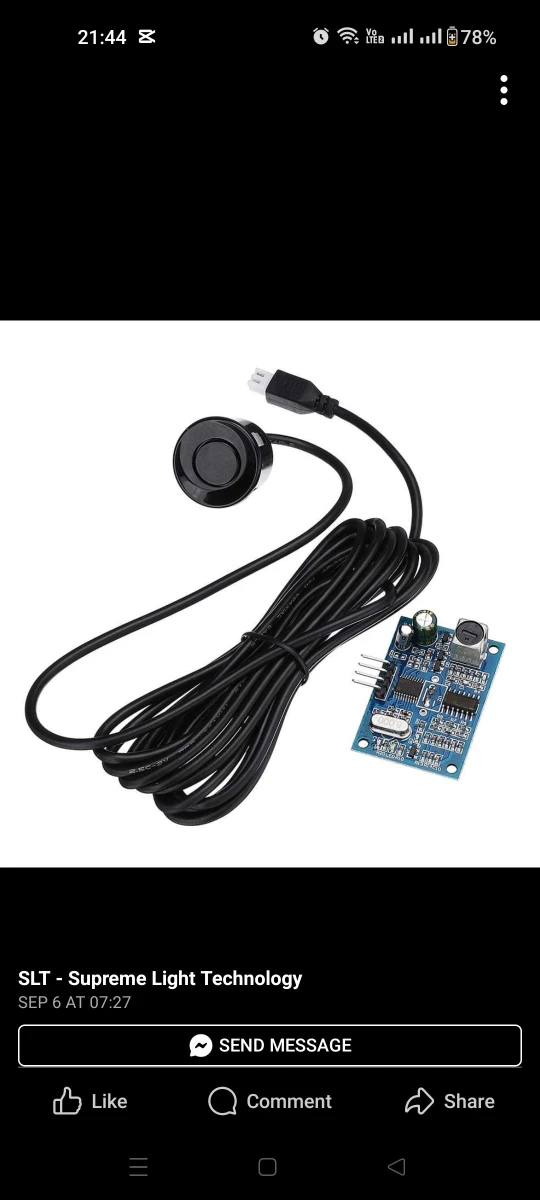

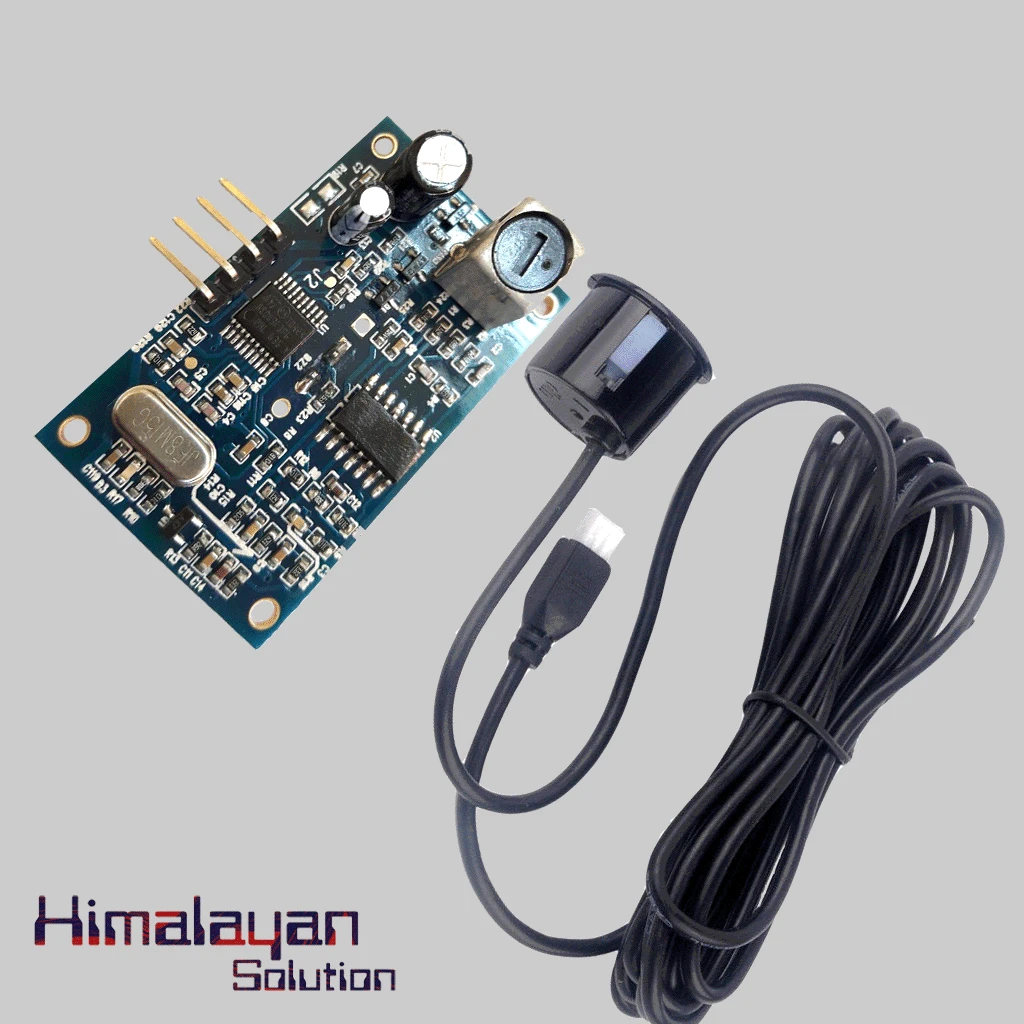

SR04T Water- Proof Ultrasonic Sensor

0 /5.0 (0 reviews)
SKU HS160

The JSN-SR04T water- proof ultrasonic sensor is small size low voltage module.  This module is mostly used for horizontal measurement distance, traffic control, obstacle bypass and many more. It has stable performance with high accuracy and strong anti – jamming feature. This module has industrial –grade integrated ult...

Read more
seller

Inhouse product

  • warranty check circle Cash on delivery available

The JSN-SR04T water- proof ultrasonic sensor is small size low voltage module.  This module is mostly used for horizontal measurement distance, traffic control, obstacle bypass and many more. It has stable performance with high accuracy and strong anti – jamming feature. This module has industrial –grade integrated ultrasonic probe design.

Specifications

13
Electrical parameters
SR04T
Operating Voltage
DC 5 V
Resting Current
 5mA
Total Current Work
 30mA
Acoustic Emission Frequency
40 kHz
Longest Distance
4.5 m
Blind
25 cm
Wiring
+ 5 V (Positive Power Supply)
Resolution
About 0.5 cm
Angle
Less Than 50 Degrees
Working Temperature
-10 ~ 70 degrees
Storage Temperature
-20 ~ 80 degrees
Module Size
41mm * 29mm
