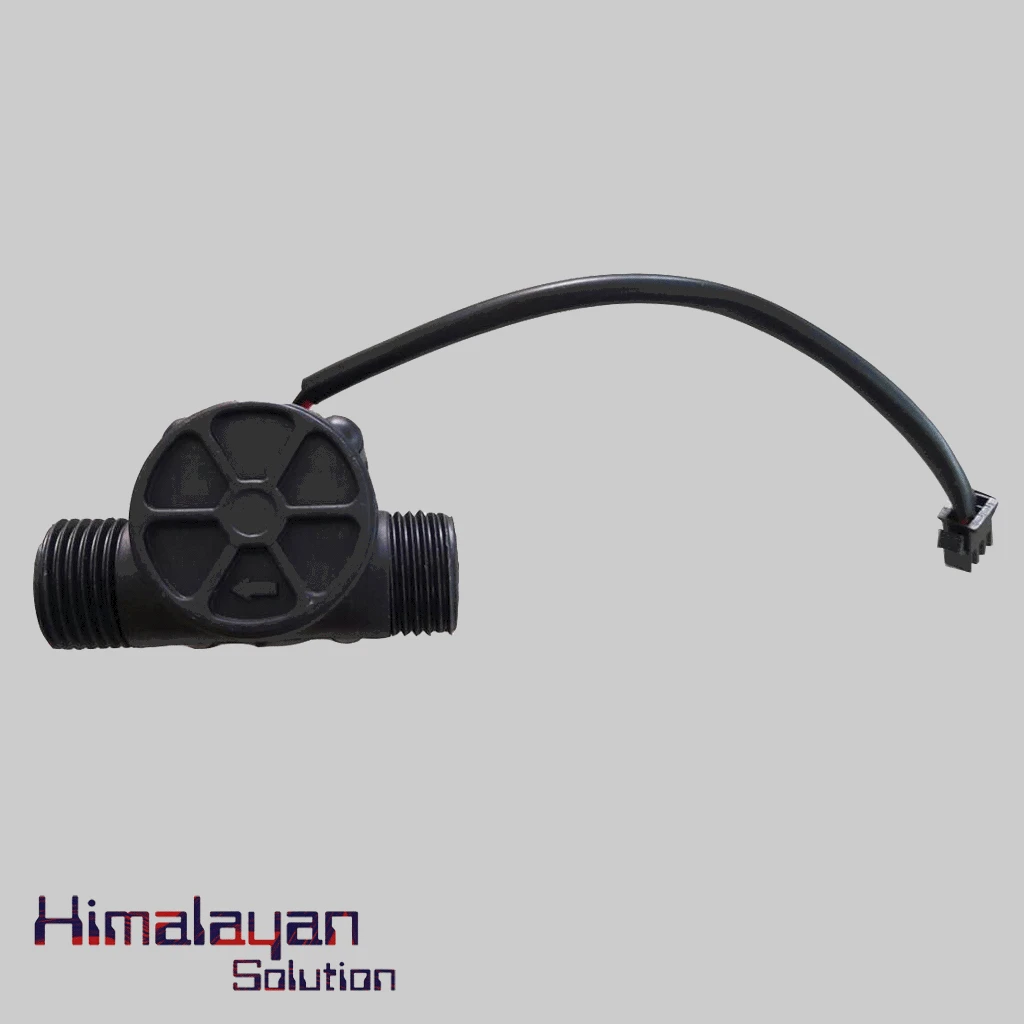

Water Flow Sensor

0 /5.0 (0 reviews)
SKU 8( flowmiter sensor with parts 90329000)

Water flow sensor YF-S201 calculate the flow of water  . It contains pinwheel sensor integrated with magnetic Hall Effect sensor.  The hall effect sensor is sealed from  the water pipe to keep it safe and dry which  outputs an electrical pulses with every revolution. It consist of a plastic valve body  It is mainly use...

Read more
seller

Inhouse product

  • warranty check circle Cash on delivery available

Water flow sensor YF-S201 calculate the flow of water  . It contains pinwheel sensor integrated with magnetic Hall Effect sensor.  The hall effect sensor is sealed from  the water pipe to keep it safe and dry which  outputs an electrical pulses with every revolution. It consist of a plastic valve body  It is mainly used for water heater , water machine , card machine , various types of  filling equipment’s and water control device and many more.

Specifications

21
Model
YF-S201
Sensor Type
Hall Effect
Working Voltage
5 to 18V DC
Max Current Draw
15mA @ 5V
Output Type
5V TTL
Working Flow Rate
1 to 30 Liters/Minute
Working Temperature Range
-25 to +80℃
Working Humidity Range
35%-80% RH
Accuracy
±10%
Maximum Water Pressure
2.0 MPa
Output Duty Cycle
50% +-10%
Output Rise Time
0.04us
Output Fall Time
0.18us
Frequency (Hz)
7.5 * Flow Rate (L/min)
Pulses Per Liter
450
Durability
Minimum 300,000 Cycles
Cable Length
15cm
Size
2.5\" x 1.4\" x 1.4\"
Red Wire
+5V
Black Wire
GND
Yellow Wire
PWM Output
