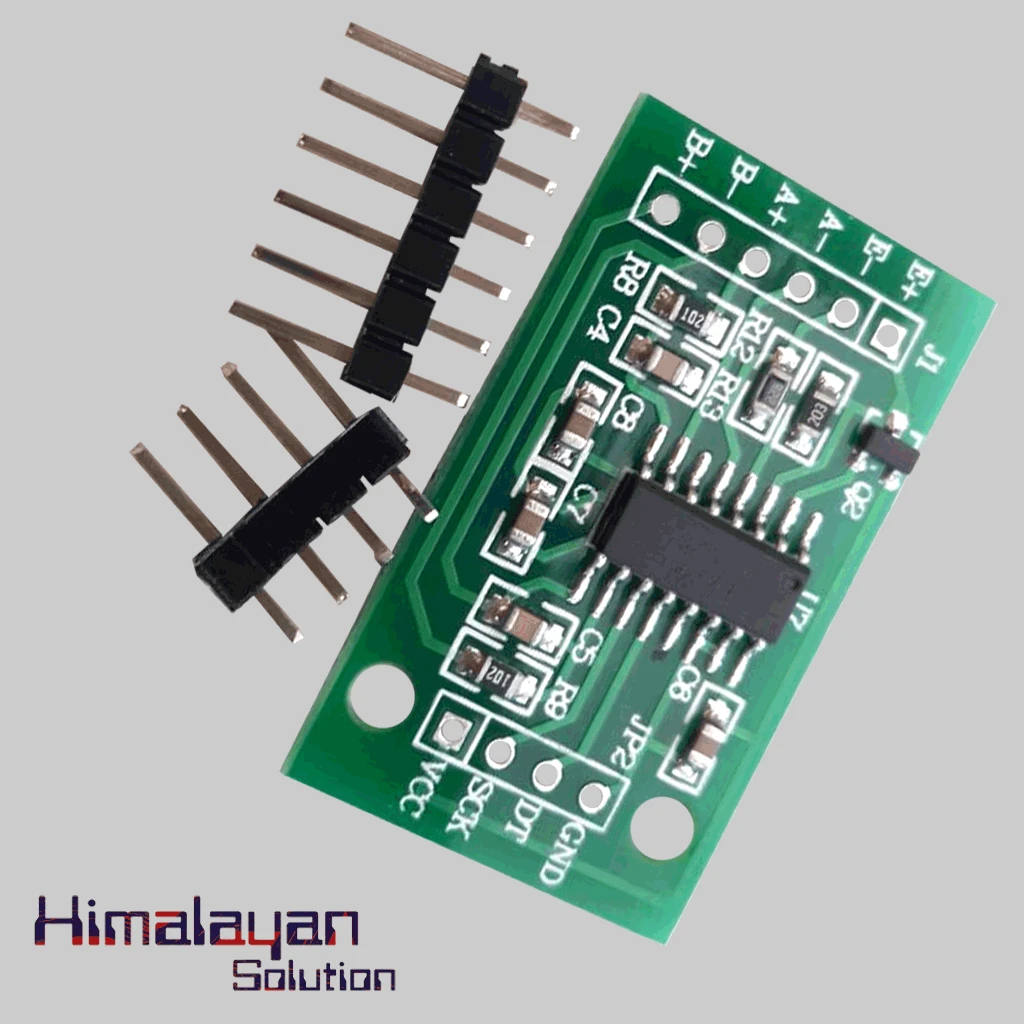

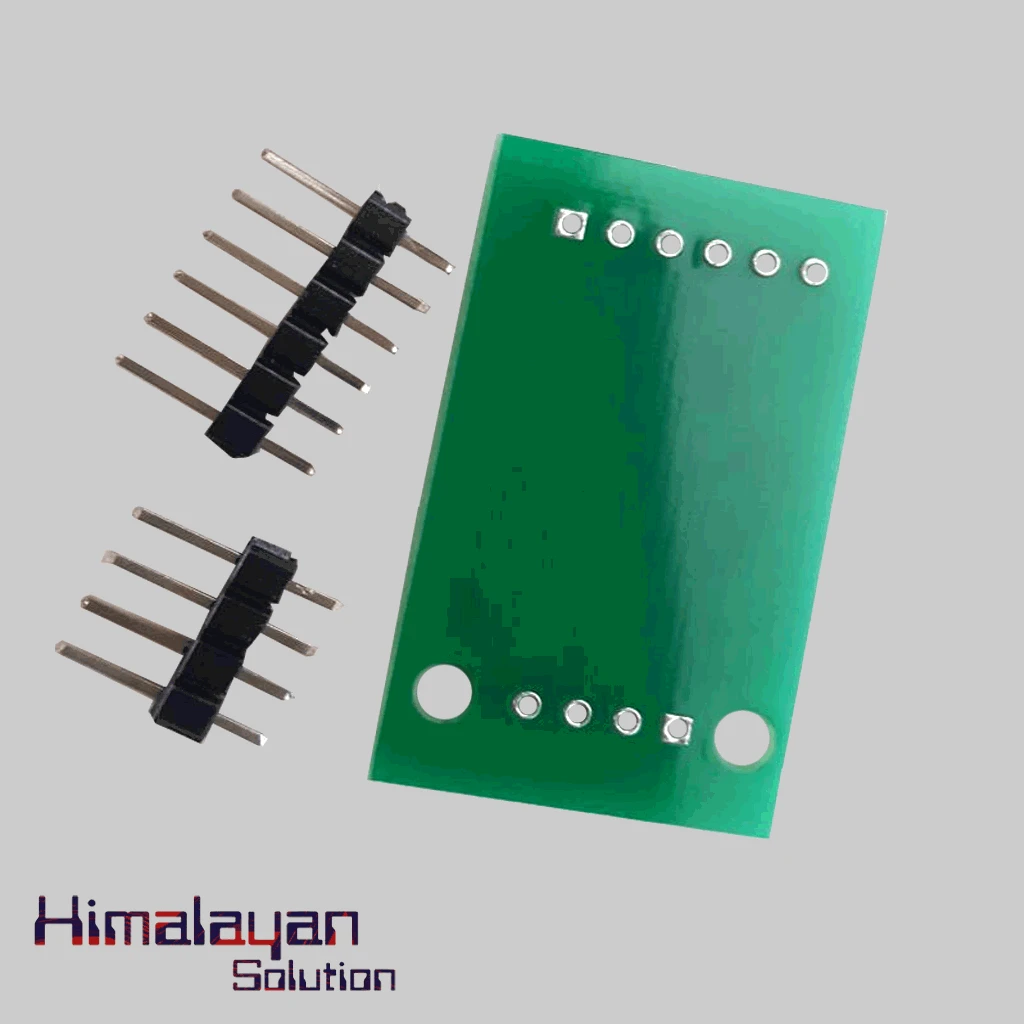

Weighing Module (HX 711 )

0 /5.0 (0 reviews)
SKU HS111(weighing sensor module set 90318000)

The HX711 Chip based Weight sensor amplifier is designed for weigh scale and industrial control application to directly interface with a bridge sensor. It has features like high integration, fast response, immunity, stable performance and many more.  It has two input channels with the internal integration of 128 progra...

Read more
seller

Inhouse product

  • warranty check circle Cash on delivery available

The HX711 Chip based Weight sensor amplifier is designed for weigh scale and industrial control application to directly interface with a bridge sensor. It has features like high integration, fast response, immunity, stable performance and many more.  It has two input channels with the internal integration of 128 programmable amplifier gain of also no programming is needed for the internal registers. It has inbuilt reset button, on – chip power supply regulator and oscillator.

Specifications

13
Chip
HX711
Typical Current
1.6mA
Operation Supply Voltage Range
2.6 ~ 5.5V
Operation Temperature Range
-40 ~ +85℃
Operating Current
<10 mA
Shutdown Current
<1μA
Typical Operating Current
<1.7mA
Module Operating Voltage
4.8V-5.5V
Data Accuracy
24 bit (&nbsp;A/D converter chip&nbsp;)
Refresh Frequency
80 Hz
Differential Input Voltage
±40mV
Weight
20 g
Size
35mmx20mm
