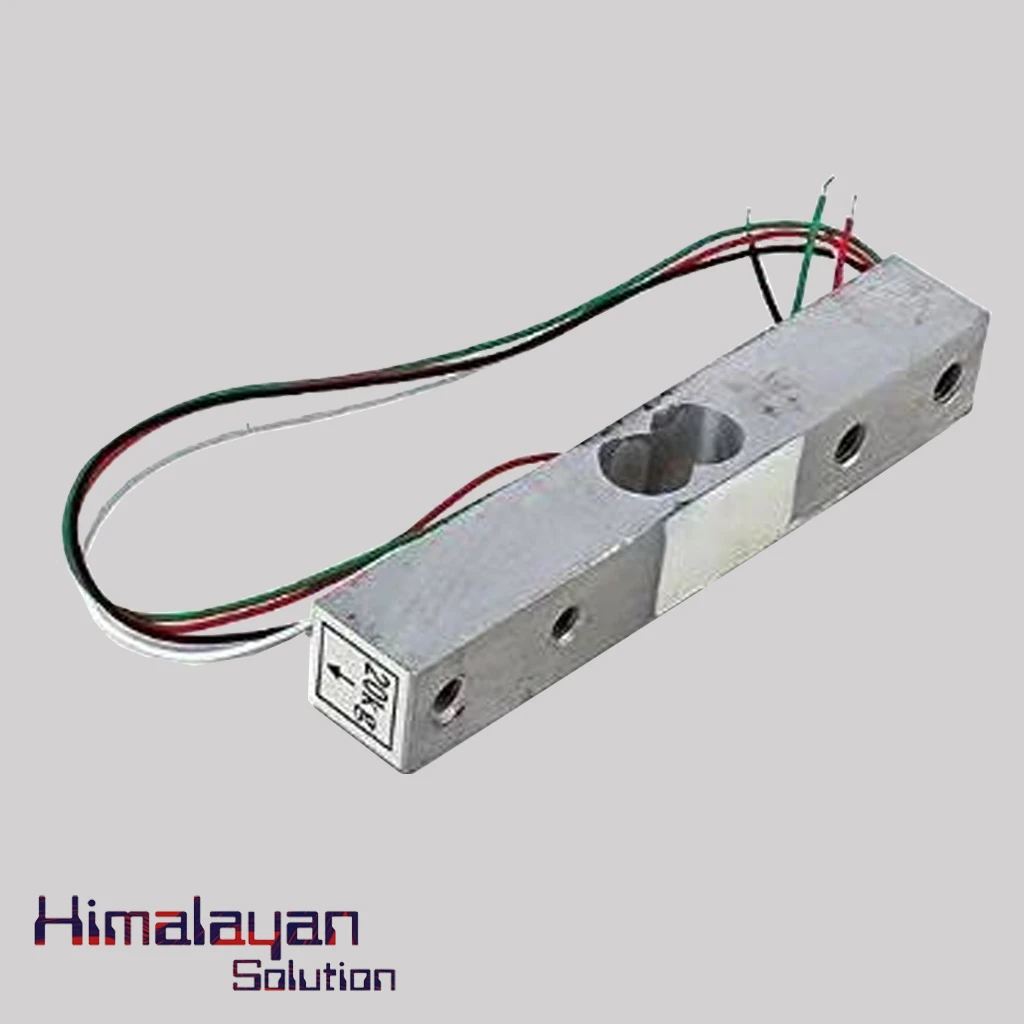

Weight Sensor 20kg

0 /5.0 (0 reviews)
SKU 3.80((weighing sensor module set 90318000)

The 20 Kg Weight sensor also known as load cell or strain gauge is made up of aluminum – alloy designed to measure force in one direction. It has maximum capacity of 20 KG reading. It ignores other force applied while is measure the specific force. It is applicable in small jewelry scales, kitchen scales, electronic sc...

Read more
seller

Inhouse product

  • warranty check circle Cash on delivery available

The 20 Kg Weight sensor also known as load cell or strain gauge is made up of aluminum – alloy designed to measure force in one direction. It has maximum capacity of 20 KG reading. It ignores other force applied while is measure the specific force. It is applicable in small jewelry scales, kitchen scales, electronic scales and many more. It required a load cell amplifier such as a  HX711 load cell amplifier , or spark fun open scale or 1046 Phidget Bridge for electrical signal output.

Specifications

21
Controlled By
Bridge Input
Sensor Type
Shear Load Cell
Weight Capacity Max
20 kg
Maximum Overload
24 kg
Creep
20 g/hr
Zero Balance
± 300 g
Cell Repeatability Error Max
± 10 g
Cell Non-Linearity Max
10 g
Cell Hysteresis Max
10 g
Temperature Effect on Span
1 g/°C
Temperature Effect on Zero
2 g/°C
Rated Output
1 mV/V
Rated Output Error Max
± 150 μV/V
Output Impedance
1 kΩ
Supply Voltage Max
5 V DC
Compensated Temperature Range(°C)
-10~+40
Operating Temperature Range(°C)
-20°C to +55°C
Cable Length
550 mm
Cable Gauge
30 AWG
Method Of Connecting Wire
Red(+) , Black(-) , Green (+) , White(-)
Small Size
55.25mm x 12.7mm x 12.7mm
