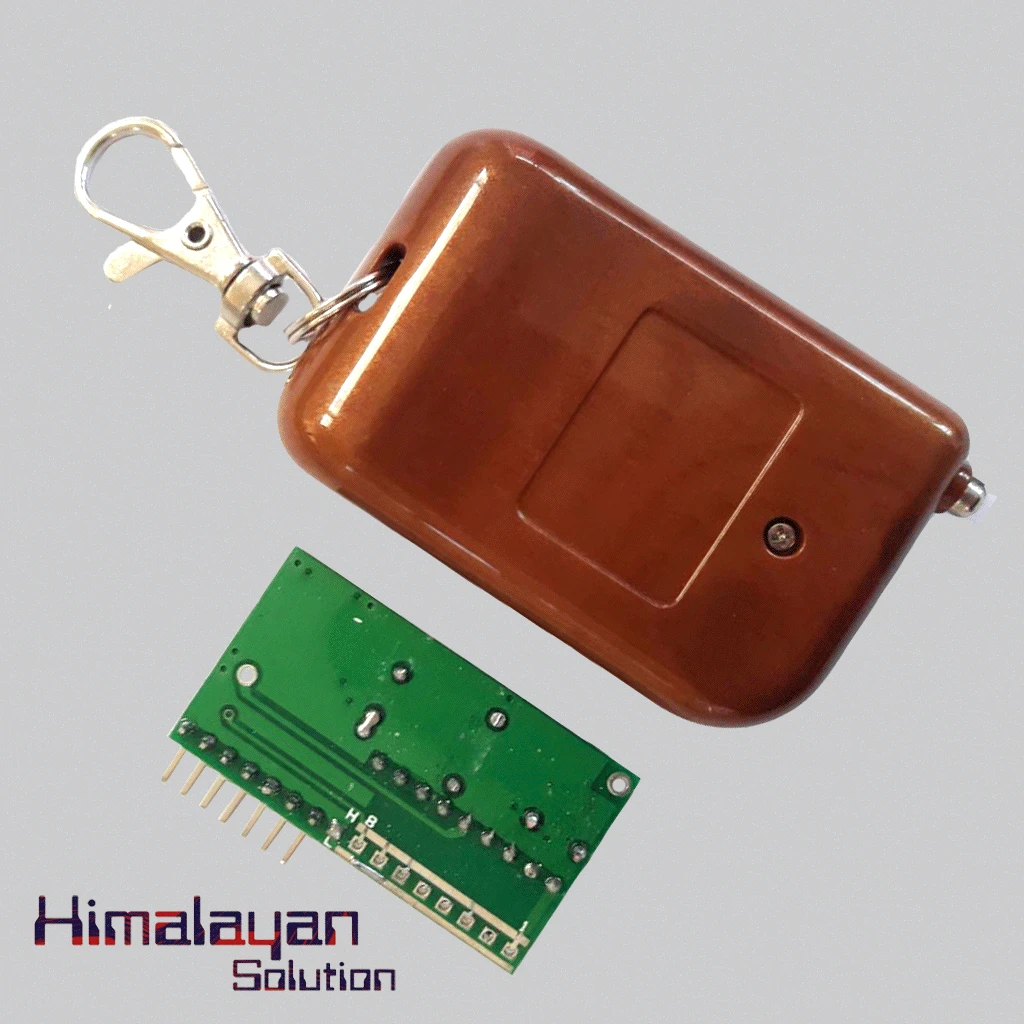

Wireless Remote With Circuit Board

0 /5.0 (0 reviews)
SKU HS165

4-Way Wireless Remote Control with Receiver module   can be used for many DIY projects. The  receiving module use LC oscillation circuit .It is easy to use and it take four road decoding output. The remote control has four buttons with corresponding to four data bits to the receiving board output pin. Power: 4.5~7V Qui...

Read more
seller

Inhouse product

  • warranty check circle Cash on delivery available

4-Way Wireless Remote Control with Receiver module   can be used for many DIY projects. The  receiving module use LC oscillation circuit .It is easy to use and it take four road decoding output. The remote control has four buttons with corresponding to four data bits to the receiving board output pin.

  • Power: 4.5~7V
  • Quiescent Current (mA): 4.5 mA
  • Modulation: AM (OOK)
  • Operating Temperature: -10°C to +70°C
  • Receiver sensitivity (dBm):-105 DB
  • Transmitting range: upto 100 Meters
  • Transmitting Frequency: 315MHz
  • Operating Mode: Non Locking
  • Channels: 4
  • Dimensions: 4.5 x 2cm
  • Weight: 37g

Specifications

14
Operating Voltage
DC 12V (BATTERY 27 A / 12 V X 1 Battery)
Current Operating
10mA @ 12V
Radiated Power
10 mw @ 12 V
Frequency
315MHz
Working Voltage
4.5-5.2V
Working Curren
15mA
Modulation Mode
Amplitude Modulation (OOK)
Working Temperature
 -10C~+70C
Rx Sensitivity (dBm)
-105dBm
Work Frequency (MHz)
315MHz
Coding Mode
Welding Plate Code (Fixed Code)
Effective Range
50~100m
SIze
6 cm x 3.8 cm x 1.2 cm
Weight
38 g
