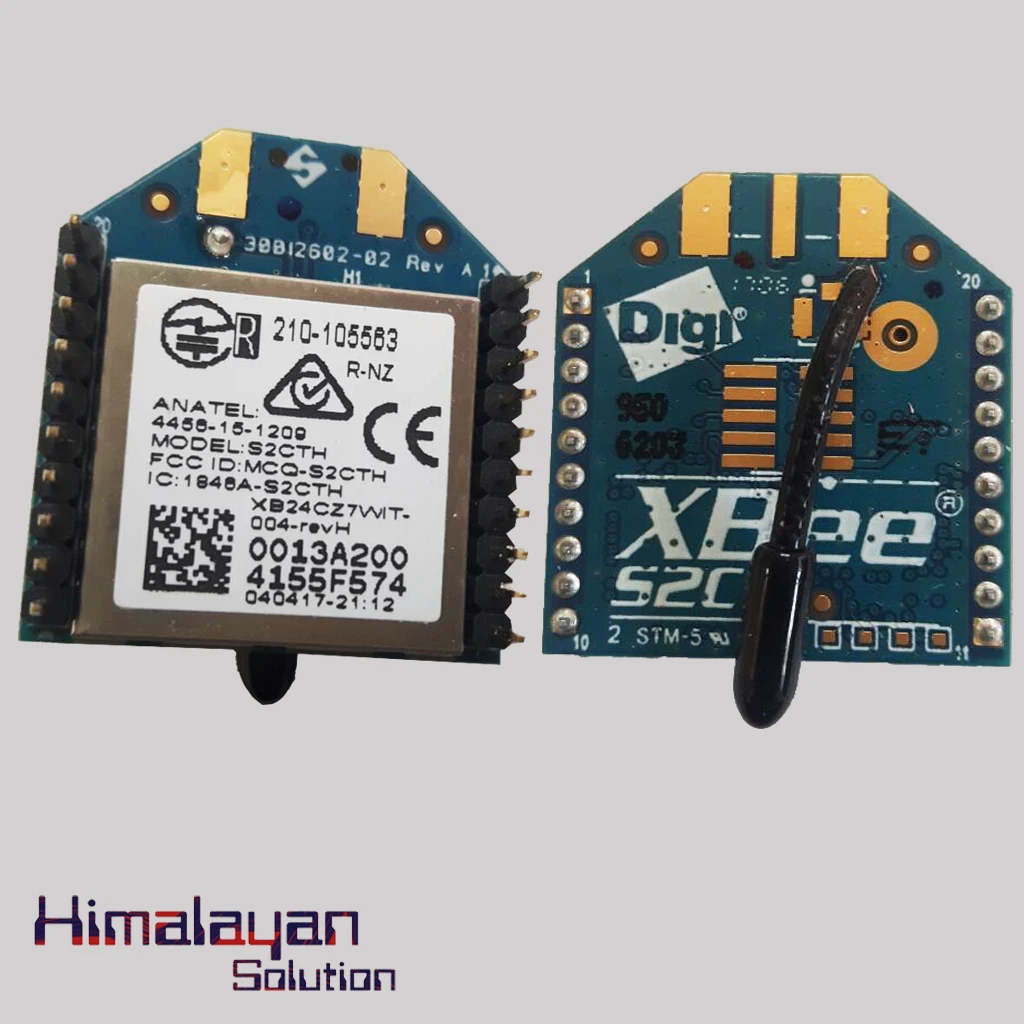

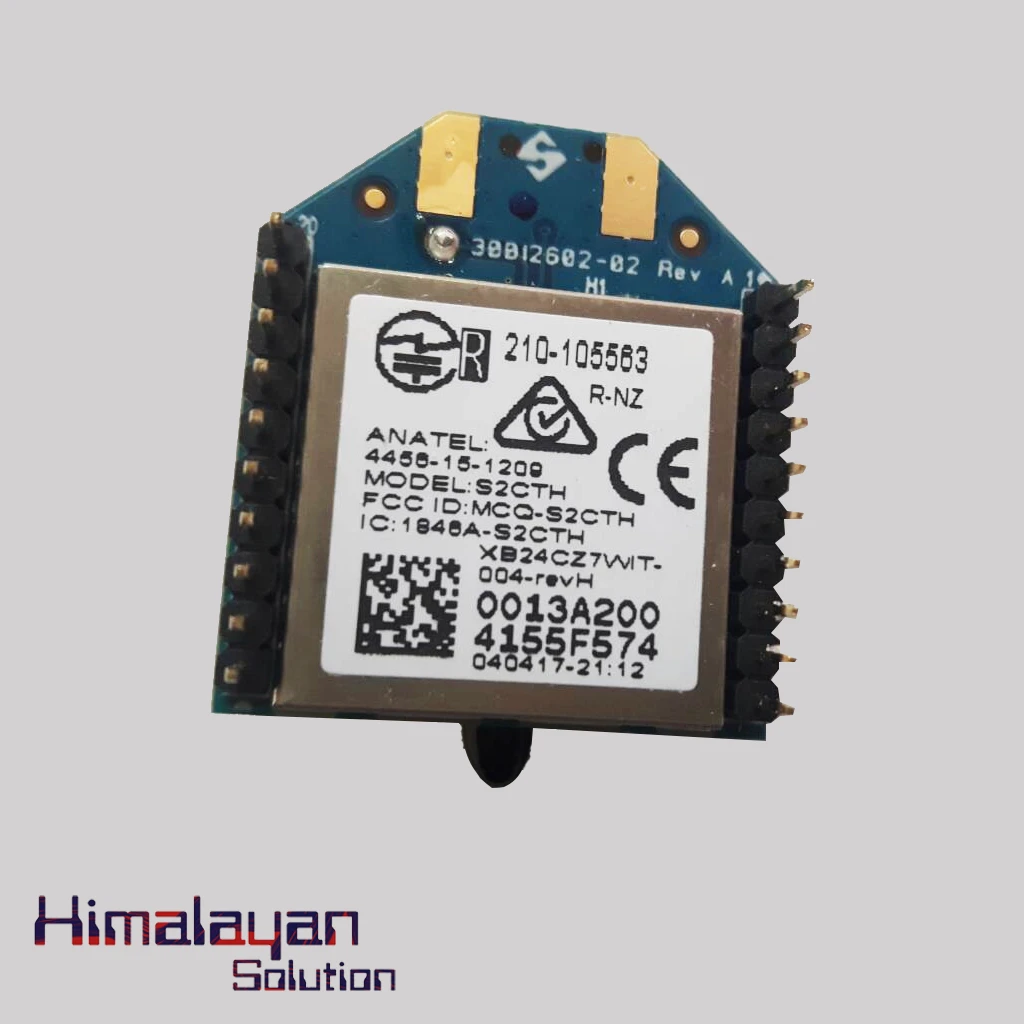

X-Bee S2C

0 /5.0 (0 reviews)
SKU HS178

The XBee S2CTH Module with PCB Antenna allows to create complex mesh network on the XBee ZigBee mesh firmware with improve power output and data protocol. This module has reliable and simple communication between computers, system or anything with a serial port. It is compactable with other ZigBee devices. Point to poi...

Read more
seller

Inhouse product

  • warranty check circle Cash on delivery available

The XBee S2CTH Module with PCB Antenna allows to create complex mesh network on the XBee ZigBee mesh firmware with improve power output and data protocol. This module has reliable and simple communication between computers, system or anything with a serial port. It is compactable with other ZigBee devices. Point to point and multi point network are supported in this module.

Specifications

20
Series
Xbee
Model
S2CTH
Frequency
2.4GHz
Transmit
3.3V @ 33mA
Receive
3.3V @ 28mA(Normal Mode)
Operating Temperature
-40°C ~ 85°C
Working Voltage
2.7V-3.6V
Max Data Rate
250kbps
Input Pins
6 10-bit ADC
Digital I/O Pins
15
Encryption
128-bit
TX Peak Current
40 mA
RX Current
40 mA (@3.3 V)
Power-Down Current
< 1 μA
Indoor/Urban Range
up to 200 ft (60 m)
Outdoor Line-of-Sight Range
up to 4000 ft (1200 m)
Transmit Power
2 mW (3 dBm)
Receiver Sensitivity
-96 dBm
Size
24mm x 28mm x 9mm
Weight
3.24g
