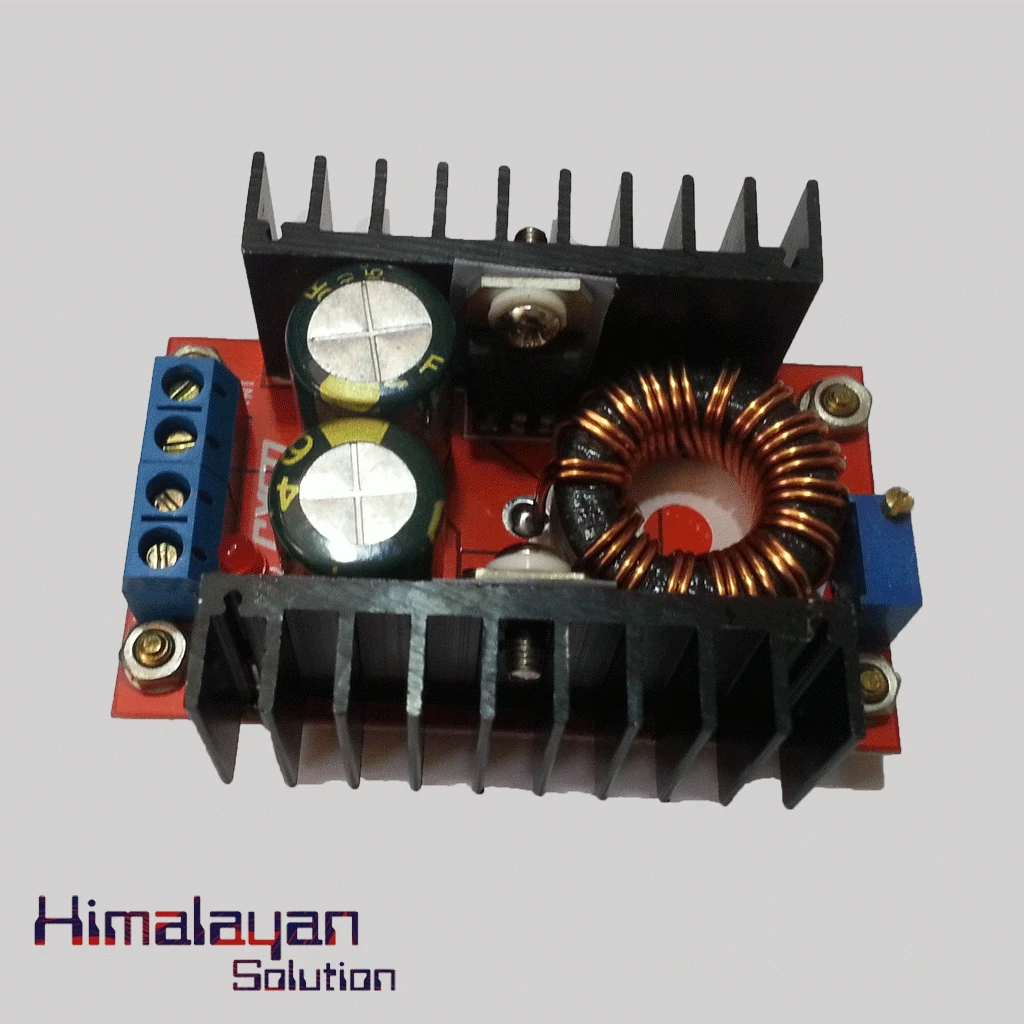

120 W Boost Module

0 /5.0 (0 reviews)
SKU HS799

The Boost module allows to step up the input voltage to as low as 10V and on the other hand sets the output voltage to 35V to 60V. The ouput voltage will  be greater than the input voltage.

Read more
seller

Inhouse product

  • warranty check circle Cash on delivery available

The Boost module allows to step up the input voltage to as low as 10V and on the other hand sets the output voltage to 35V to 60V. The ouput voltage will  be greater than the input voltage.

Specifications

15
Name
120 W Boost Module
Input Voltage
10V to 32V DC
Output Voltage
35V to 60V DC (Adjustable)
Output Current
5A MAX
Input Current
16A MAX (Higher than 10A need cooling)
Output Ripple
2% MAX
Working Temperature
-40° to 85° C
Full-Load Temperature
45°
No-Load Current
25 mA typical
Voltage Regulation
±0.5%
Load Regulation
±0.5%
Dynamic Response Speed
200 uS 5%
Short Circuit Protection
None
Size
2.60*1.85*1.1 Inch (L*W*H)
Weight
66 g
