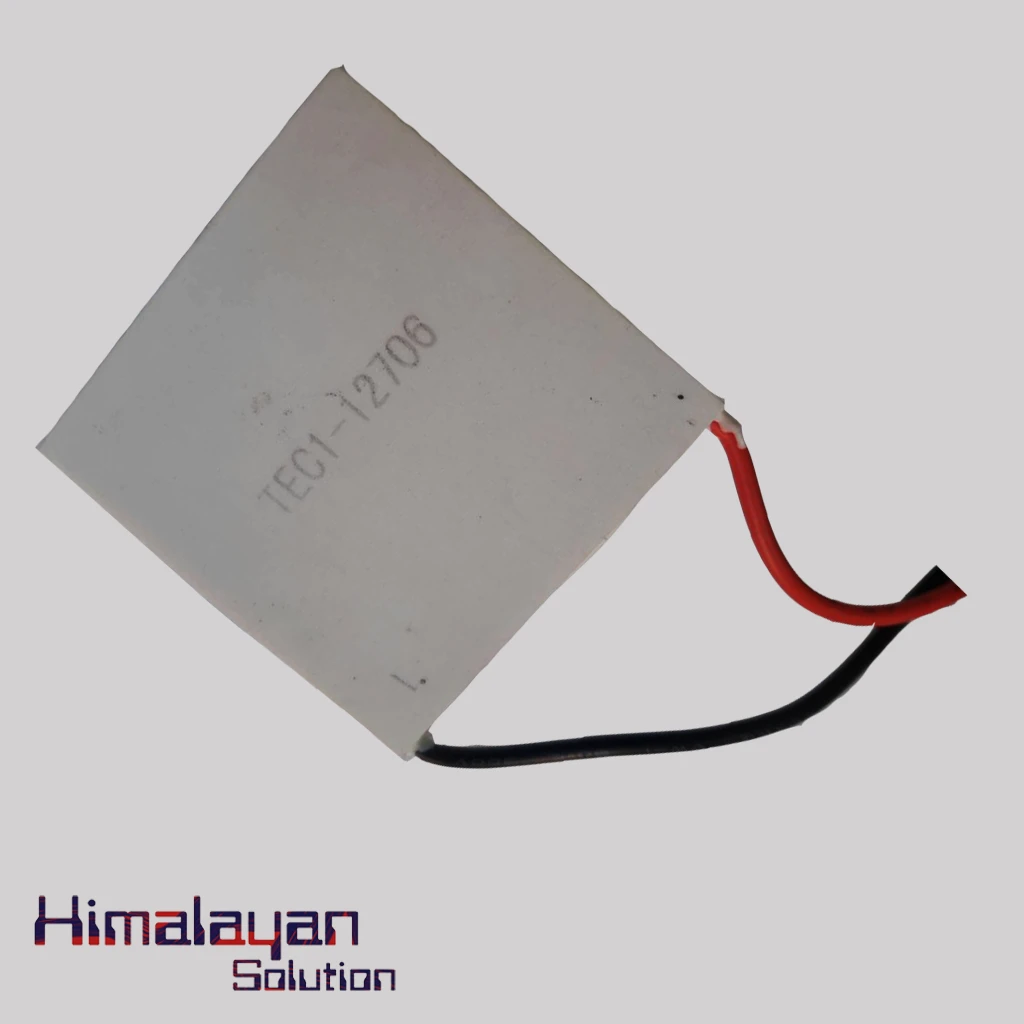

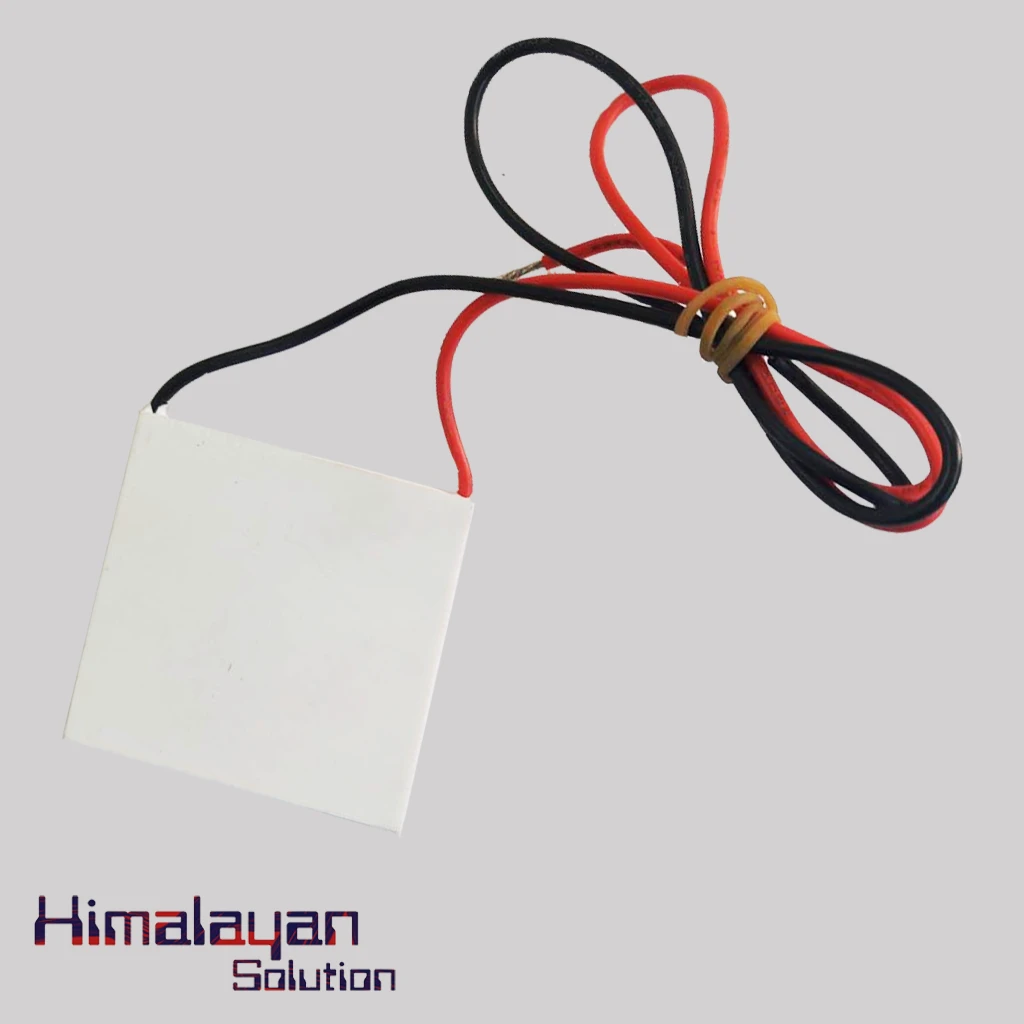

Tec-12706 Thermo Couple Module

0 /5.0 (0 reviews)
SKU 8

 The TECI-12706 Thermocouple Module is a semiconductor based electronic component that works as a small heat pump. This thermocouple create a temperature differential on each side i.e. one side gets hot and other side gets cool.  To avoid burn of the module it must be used in conjunction with a heat sink. The module ha...

Read more
seller

Inhouse product

  • warranty check circle Cash on delivery available

 The TECI-12706 Thermocouple Module is a semiconductor based electronic component that works as a small heat pump. This thermocouple create a temperature differential on each side i.e. one side gets hot and other side gets cool.  To avoid burn of the module it must be used in conjunction with a heat sink. The module has 127 couples in-built. It is mostly used in computer CPU, portable refrigerators, Temperature stabilizer, Liquid cooling, Photonic and medical systems and many more. It is also knows as Thermoelectric cooling module, Peltier modules, Thermoelectric modules.

Specifications

13
 Model Number
TEC1-12706
Rated Voltage
12V
Rated Power
50~72W
Voltage lmax
7A
VoltageUmax
15.4V
Voltage Qcmax
62.2W
Tmax
69C
Resistance
1.7 Ohm
Number Of Thermocouples Present
127
Operating Temperature
180°C -50°C
Size
40 x 40 x 3.6mm
Cable Length
30cm
Colour
White
