2s Bms (HX-2s-D01)

0 /5.0 (0 reviews)
SKU 2.25

Model: HX - 2s - D01 charging pressure range: 4.25V ~ 4.35V ±0.05 discharge voltage range: 2.5V ~ 3.0V ±0.05 Maximum working current: 8A working temperature: -40 ~ +50 ° Maximum instantaneous current: 10A storage conditions: -40 ~ +80 ° Static electricity: less than 10uA useful life: more than 50000 hours Resistance: l...

Read more
seller

Inhouse product

  • warranty check circle Cash on delivery available

Model: HX - 2s - D01

charging pressure range: 4.25V ~ 4.35V ±0.05

discharge voltage range: 2.5V ~ 3.0V ±0.05

Maximum working current: 8A

working temperature: -40 ~ +50 °

Maximum instantaneous current: 10A

storage conditions: -40 ~ +80 °

Static electricity: less than 10uA

useful life: more than 50000 hours

Resistance: less than 300mΩ

short circuit protection: to protect and restore must charge

Charging voltage: 8.4V - 9V

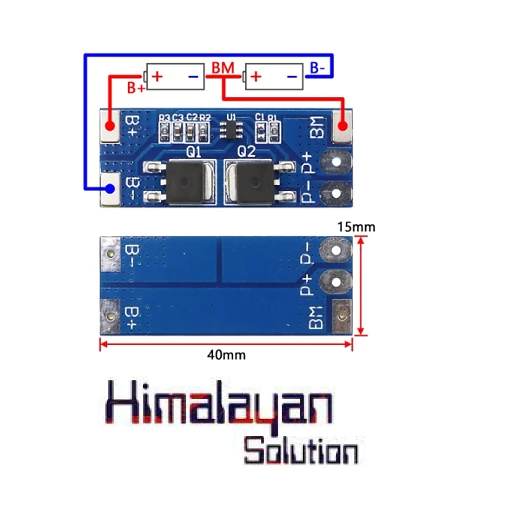

2S BMS Cnnection instruction :

B. + connect battery anode;

B. - connect battery cathode;

MB, connect battery 1 and 2 before the join points;

P. + correct answer the charge/discharge (charging/discharging end sharing);

P. - answer the charge/discharge end negative (charging/discharging end sharing).



Package included:

1pc* Charger Protection Board
