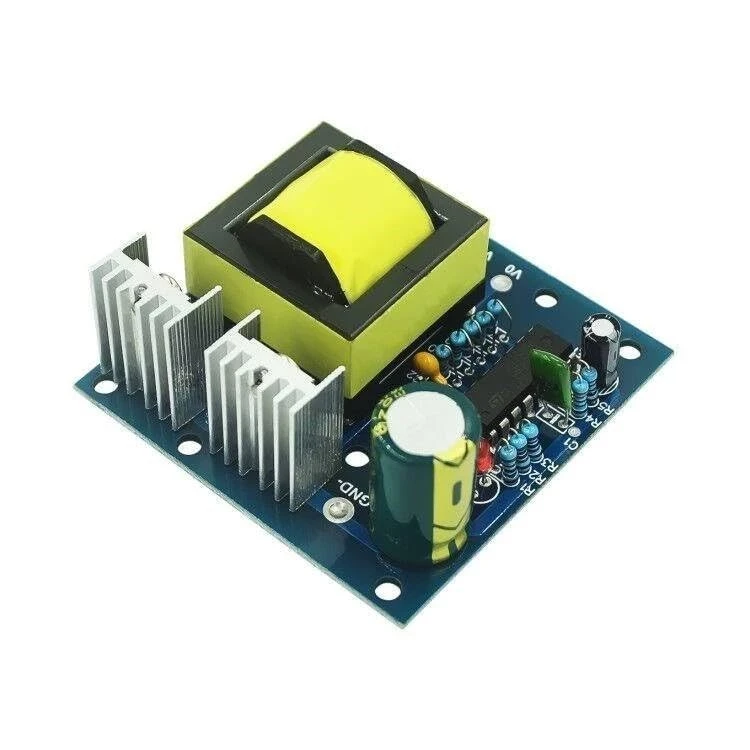

Inverter 150W 12v dc to 220v ac

0 /5.0 (0 reviews)
SKU HS Inverter 150W 12v dc to 220v ac

This inverter has board that belongs to high frequency square AC output and also it is not suitable for the inductive appliance such as motor ,fan and coil transformer. While picked up with low-load machines (LED light, mobile phone charger and DVD set-top box), you are suggested to pick up with low voltage point, such...

Read more
seller

Inhouse product

  • warranty check circle Cash on delivery available

This inverter has board that belongs to high frequency square AC output and also it is not suitable for the inductive appliance such as motor ,fan and coil transformer. While picked up with low-load machines (LED light, mobile phone charger and DVD set-top box), you are suggested to pick up with low voltage point, such as: 172V/110V.It should be install a large heat sink to release its long time high-load  (¡Y100W) work.It should not connect the power inversely. Besides, power supply and power wire should have large enough current. Do not overload and short-circuit because it without any protections.The number in measured by the output high frequency non-load voltage meter will be a little higher.



Specifications

10
PCB size
66*61mm
Input Voltage
DC12V
Output Voltage
110V/200V/220V/280V
Output Wave Form
high frequency square wave or DC(un-filtered)
Output Power
rated 150W, Max 200W (When higher than 100W, please use cooling fan)
Current with 12V interface (No-load)
250mA
Working Frequency
37kHz
color
green
material
ABS
Size
7*7*4cm
