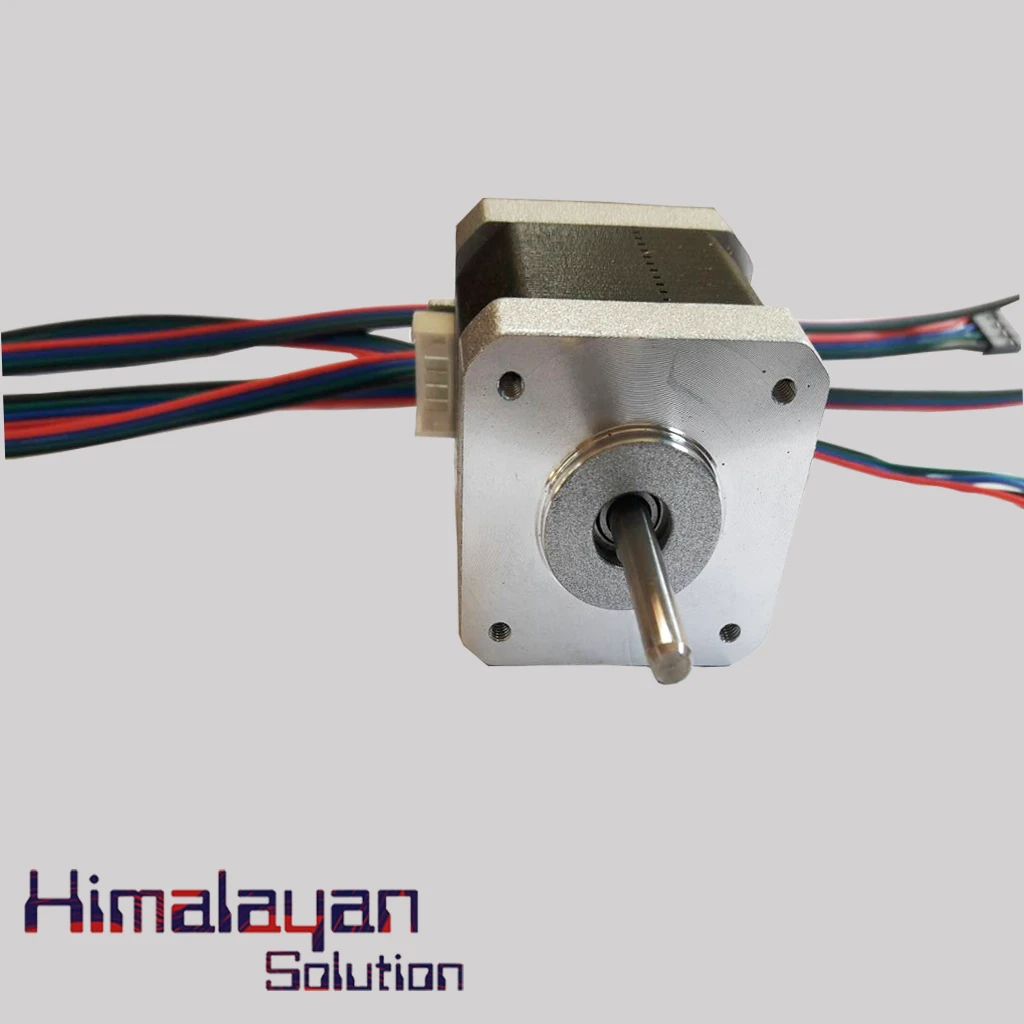

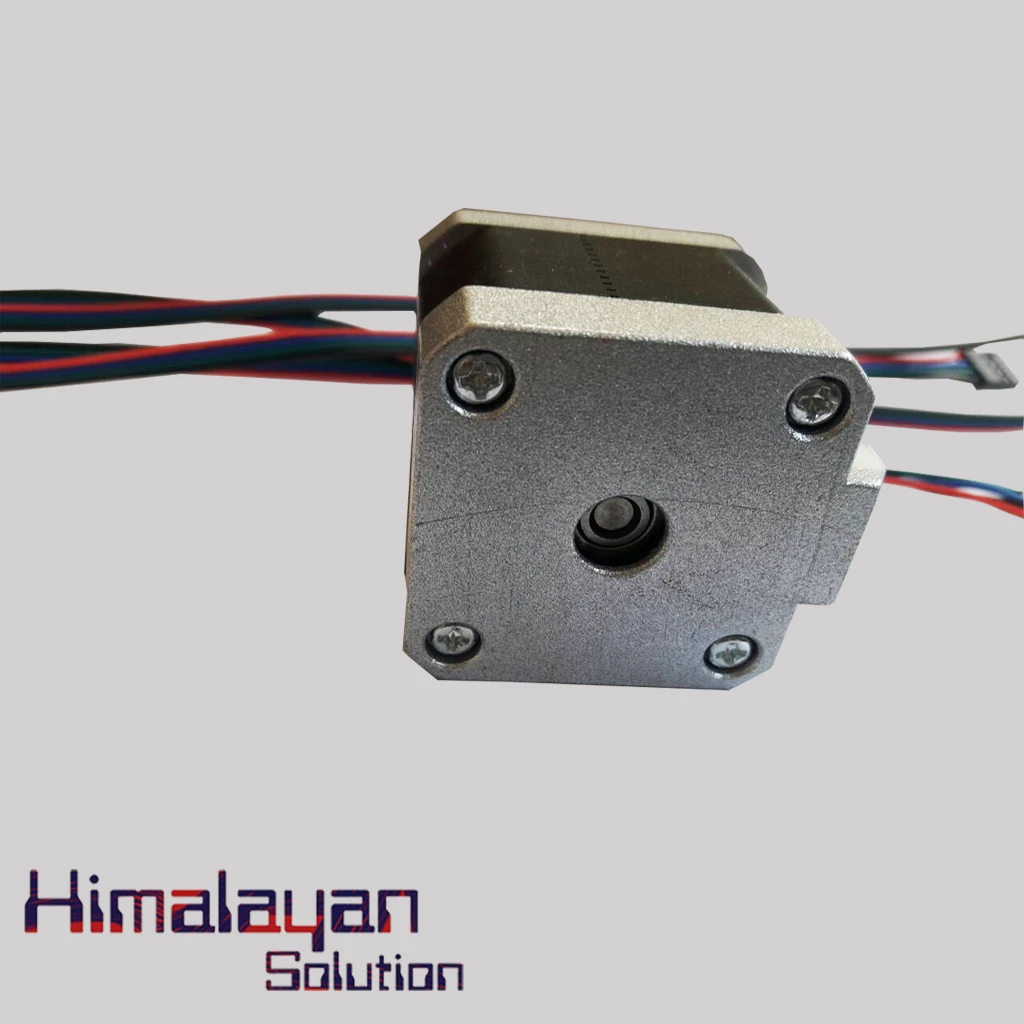

NEMA17 HIGH TORQUE STEPPER MOTOR SMALL

0 /5.0 (0 reviews)
SKU 20.40(Stepper motor nema 17 85011000)

Small Stepper motor (High torque) for applications like Micromouse. Features: Tapped Holes on 4 corners. 12V 0.3Amp in bipolar mode. Weight : 220 gm Dimensions :42 x 42 x 34 mm 5 mm Standard Shaft 24 mm length Torque 3.1kgcm Ideal for micromouse due to its low weight to torque ratio. Usage: Connect +ve to 2 Common wire...

Read more
seller

Inhouse product

  • warranty check circle Cash on delivery available

Small Stepper motor (High torque) for applications like Micromouse.


Features:

  • Tapped Holes on 4 corners.
  • 12V 0.3Amp in bipolar mode.
  • Weight : 220 gm
  • Dimensions :42 x 42 x 34 mm
  • 5 mm Standard Shaft 24 mm length
  • Torque 3.1kgcm
  • Ideal for micromouse due to its low weight to torque ratio.

Usage:

  • Connect +ve to 2 Common wire and drive 4 coils with drivers such as ULN2003/ULN2803 for driving in Unipolar mode. This ic's will not work directly with this motor since current capacity is less. However 2 in parallel can drive this motors.
  • Connect H-bridge / Chopper Drive to 4 wires to use in Bipolar mode.

Wiring Details:

  • A+ = Blue
  • A- = Yellow
  • B+ = Red
  • B- = Green

Package Includes:

  • 1 x NEMA17 HIGH TORQUE STEPPER MOTOR SMALL

Specifications

16
Name
Nema 17 Stepper Motor
Step Angle
1.8° (Degree)
Motor Type
Bipolar Stepper
Holding Torque
45 Ncm (63.7oz.in)
Rated Current/Phase
2 A
Phase Resistance
1.1 ohms
Inductance
2.6 mH+/-20% (1 KHz)
Frame Size
42 x 42 mm
Body Length
40 mm
Shaft Diameter
5 mm
Shaft Length
23 mm
D-Cut Length
21 mm
Number of Leads
4
Lead Length
1000 mm
Connection
Black(A+), Green(A-), Red(B+), Blue(B-)
Weight
About 310 g
