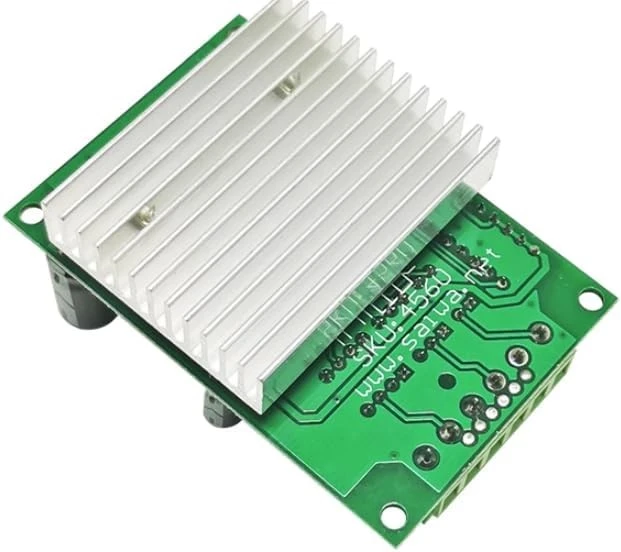

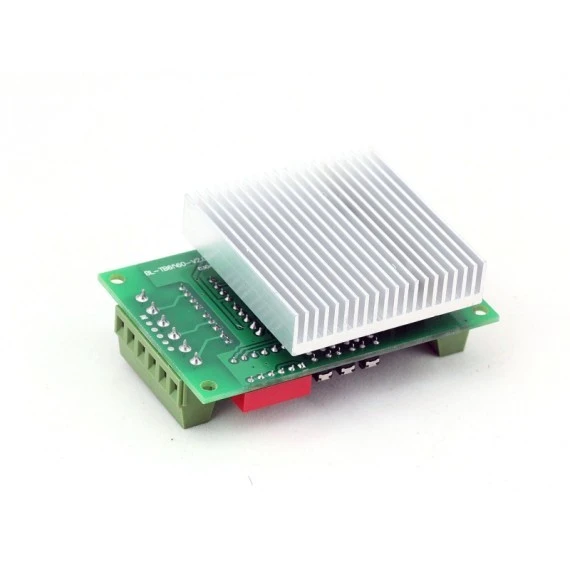

Tb6560 Stepper Motor Driver TB6600

0 /5.0 (0 reviews)
SKU Tb6560 Stepper Motor Driver TB6600

The latest 3rd generation TB6565 Stepper Driver has been upgraded to the intelligent, professional and industrial-level drive set by re-designing the PCB board, embedding intelligent memory chip(professional version) and upgrading the external manual control tools (display panel and control pad).

Read more
seller

Inhouse product

  • warranty check circle Cash on delivery available

The latest 3rd generation TB6565 Stepper Driver has been upgraded to the intelligent, professional and industrial-level drive set by re-designing the PCB board, embedding intelligent memory chip(professional version) and upgrading the external manual control tools (display panel and control pad).

Stepper motors typically have a step size of 1.8° or 200 steps per revolution, this refers to full steps. A microstepping driver such as the TB6560 allows higher resolutions by allowing intermediate step locations. This is achieved by energizing the coils with intermediate current levels.For instance, driving a motor in 1/2 step mode will give the 200-steps-per-revolution motor 400 microsteps per revolution.

Specifications

6
Operating voltage
10 – 35 VDC, 24 VDC recommended
Max output current
3 A per phase, 3.5 A peak
Microstep resolution
full, 1/2, 1/8 and 1/16
Protection
Low-voltage shutdown, overheating and over-current protection
Current settings
14
Clock frequency
15 kHz
